ZX-SWTGW218AS
Brands
| Brand | Type | Managed | PCB | Flash | Chip RTL |
|---|---|---|---|---|---|
| Mokerlink | ZX-SWTGW218AS | Yes | SWTG118AS-V2.0-16029 | 2MB (FM25Q16A) | 8273N + 8224N |
| Sodola | |||||
| Horaco | HC-SWTGW218AS | Yes | SWTG118AS-V2.1 | ||
| XikeStor | SKS3200-8E1X | Yes | SWTG118AS-V2.1-17462 | 2MB (25Q16JVSIQ) |
All boards in this table use MACHINE=SWTGW218AS. The Horaco HC-SWTGW218AS is also sold with the
SWTG018AS-A V2.0 board, which needs a different firmware. Check the marking
on the PCB before flashing.

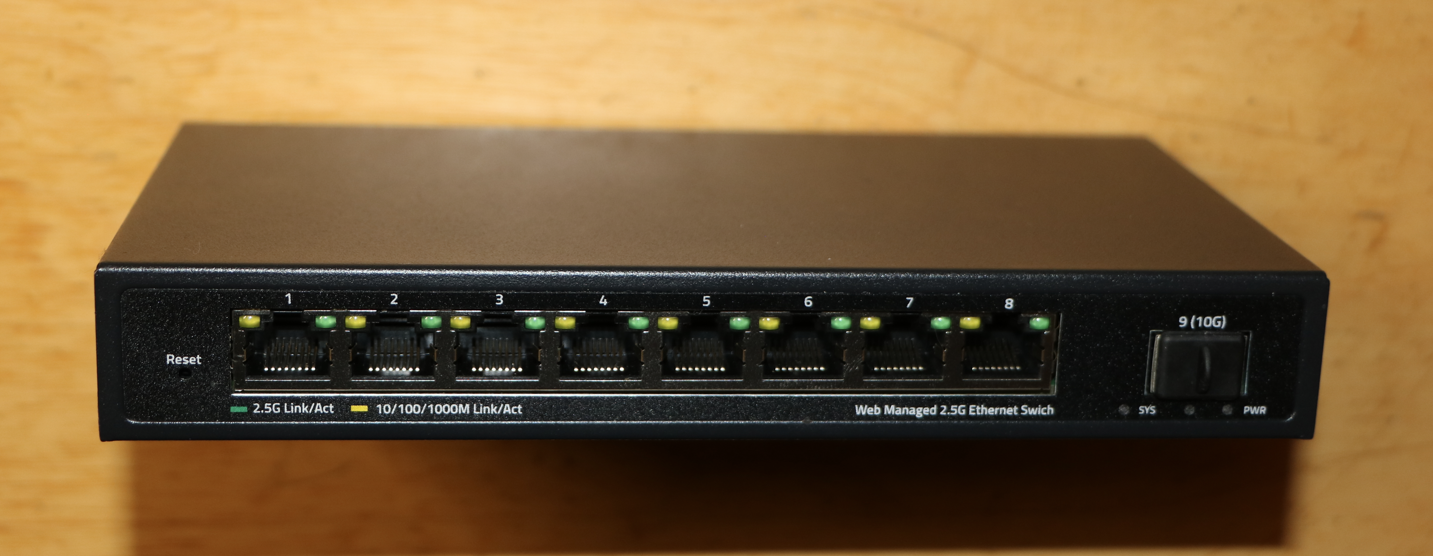

Photos
PCB
See up'n'atom's Repo:
https://github.com/up-n-atom/SWTG118AS/blob/main/photos/SWTG118AS-v2.0/SWTG118AS-v2.0-pcb-top.JPG
https://github.com/up-n-atom/SWTG118AS/blob/main/photos/SWTG118AS-v2.0/SWTG118AS-v2.0-pcb-bottom.JPG
