Keeplink KP-9000-6XH-X2 / KP-9000-6XHML-X2
Following is documentation for switches marked as KP-9000-6XH-X2 or
KP-9000-6XHML-X2.
Using SPI clamp in-board is the only method for initial installation.
Label specifications
- Name: 4X 2.5G RJ45 Port + 2 X 10G SFP+ Port
- Model: KP-9000-6XH-X2 / KP-9000-6XHML-X2
- Ports:
- 4 × RJ45: 10/100/1000/2500 Mbps
- 2 × SFP+: 1000 / 2500 / 10000 Mbps
Machine target
These devices exist with different PCB revisions. Select the machine target by the PCB silkscreen, not only by the label on the case.
| PCB silkscreen | Known labels | Recommended machine target | Legacy target |
|---|---|---|---|
2M-PCB43-V1.2 |
KP-9000-6XHML-X2 |
MACHINE_KP_9000_6XHML_X2_V1_2 |
MACHINE_KP_9000_6XHML_X2 |
2M-PCB43-V2.1 |
KP-9000-6XH-X2, KP-9000-6XHML-X2 |
MACHINE_KP_9000_6XH_X2_V2_1 or MACHINE_KP_9000_6XHML_X2_V2_1 |
MACHINE_KP_9000_6XH_X2 |
The V1.2 and V2.1 boards use different GPIO, SFP, port and LED mappings. The unmanaged and managed labels are firmware/SKU differences and do not by themselves identify the PCB wiring.
What works
- All four 2.5GBASE-T RJ45 ports at 10/100/1000/2500 Mbps
- SFP port with 10G modules
- LEDs
- untested due to missing Hardware: SFP+ ports equipped with 1G or 2.5G SFPs.
Hardware overview: 2M-PCB43-V2.1

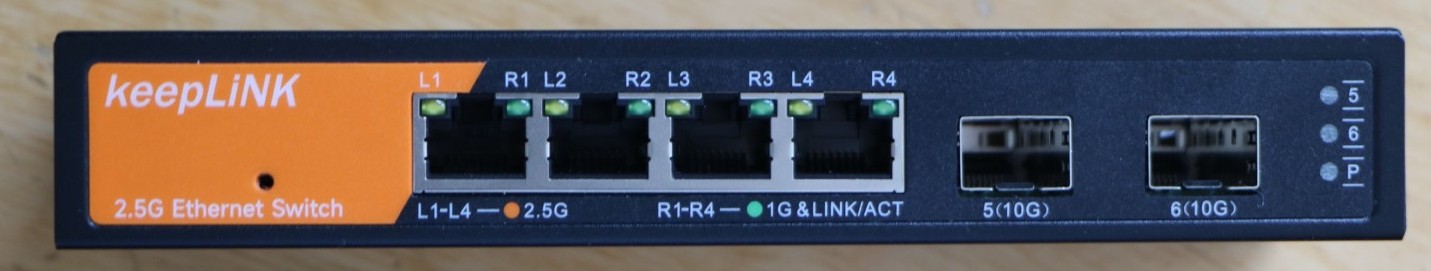

Front side:
Label:
PCB overview
Board markings
- Top silkscreen: 2M-PCB43-V2.1

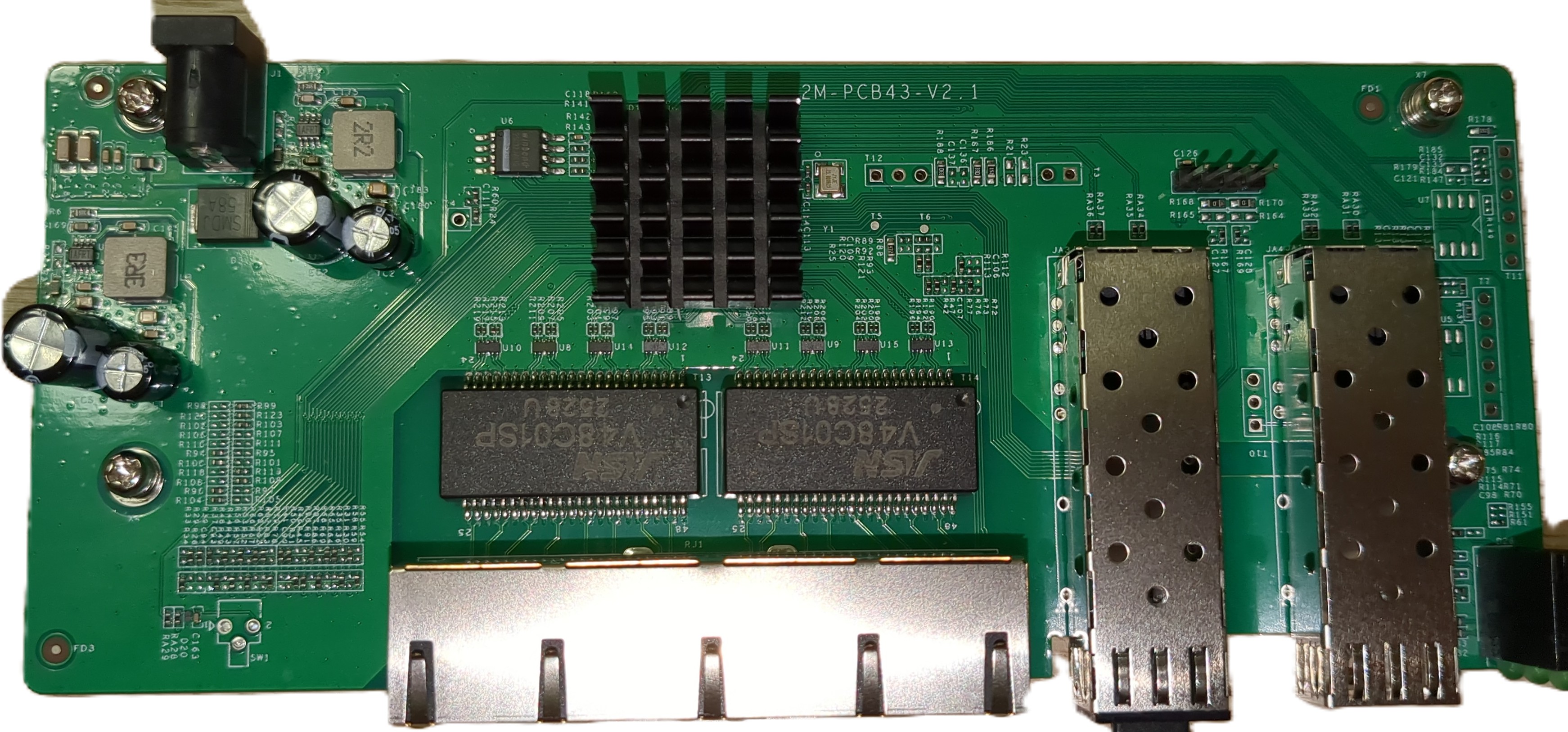

Top side

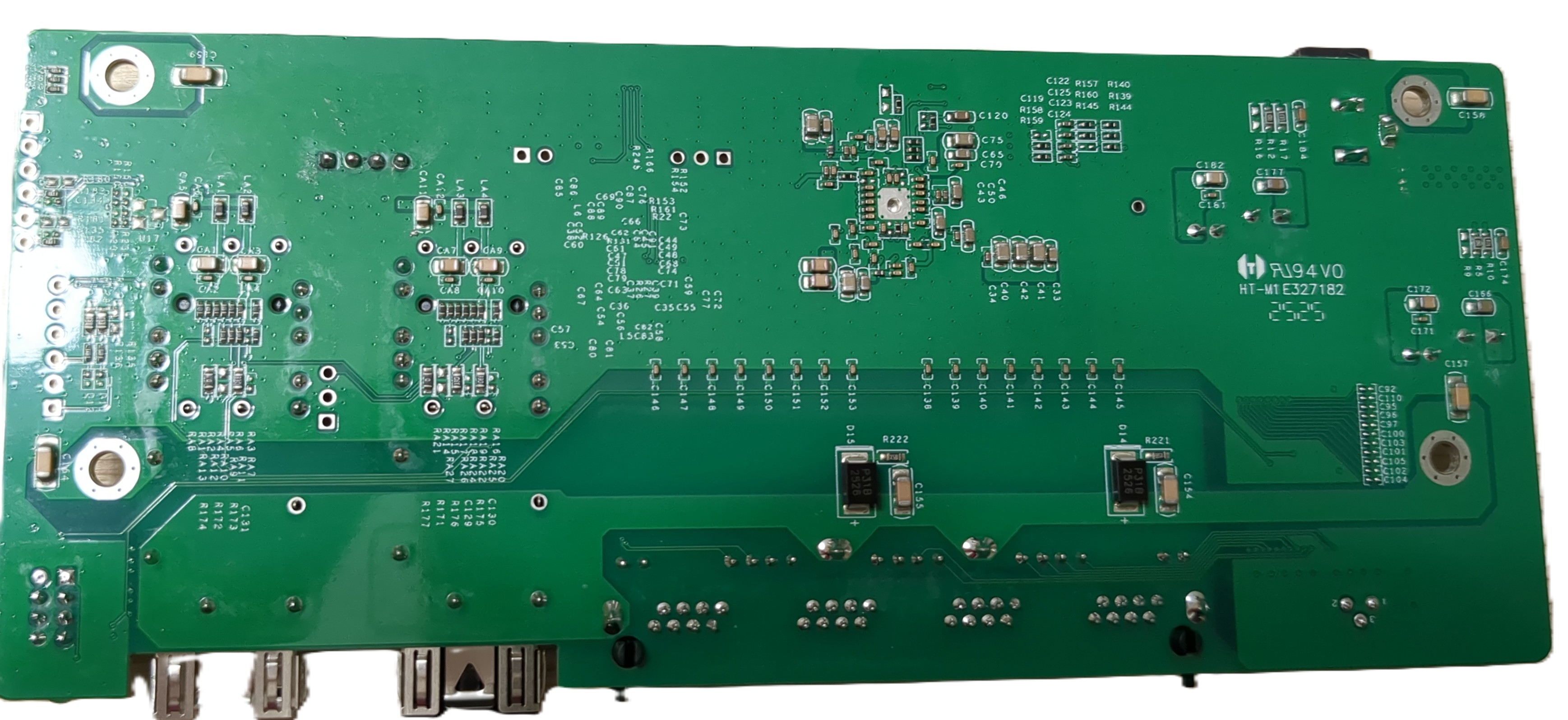

Bottom
Hardware overview: 2M-PCB43-V1.2
The V1.2 board has been seen in managed KP-9000-6XHML-X2 devices.
Label:

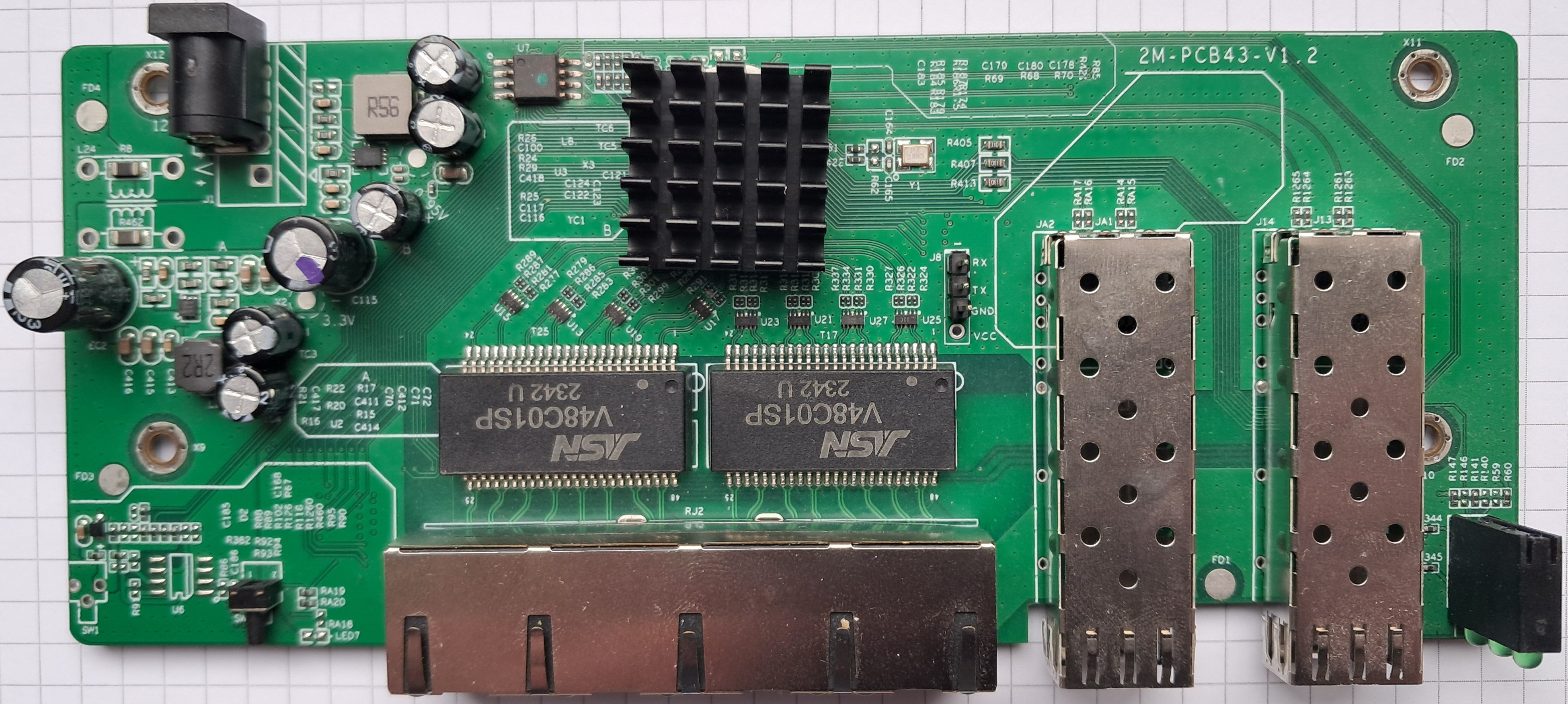

Top side:

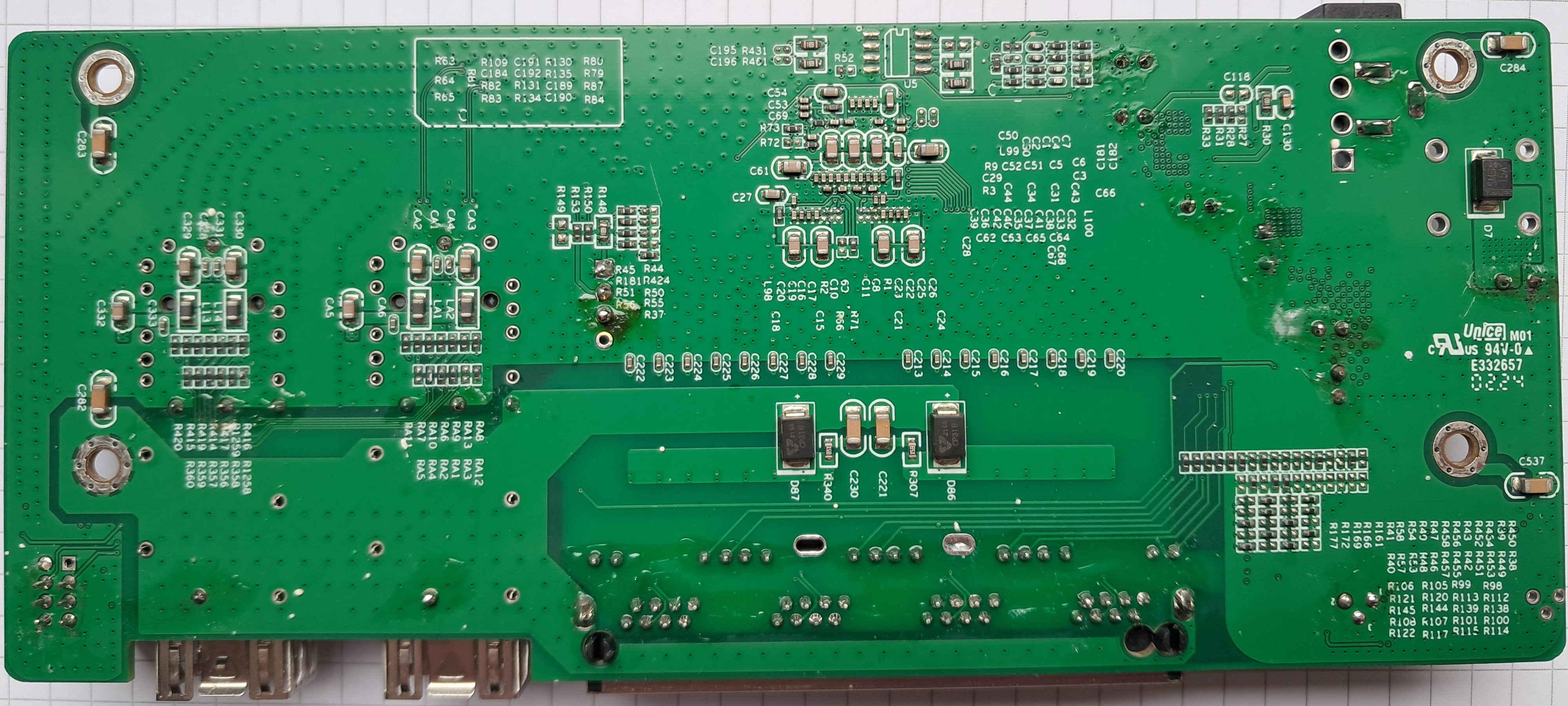

Bottom:
Reset Button
There's an unpopulated Reset button on the front left side of the PCB. It can easily be soldered, you'll need an 4.5mmx4.5mm 90° button switch with a 3-pin footprint. I got mine here: https://de.aliexpress.com/item/1005007295346702.html The front case has already the hole in the metal case, you just have to punch a hole through the foil.
Power supply
Input power is delivered via barell plug, 12V 1A adapter was provided.
