SWTG024AS-A-V2.0.1_4C_2SFP
It is highly similar to SWTG024AS-V2.0, with the only difference being the GPIO configuration for the SFP port.
Brands
| Brand | Type | Managed | PCB | Flash | Chip RTL |
|---|---|---|---|---|---|
| Horaco | ZX-SG4T2 | PCB-SWTG024AS-A-V2.0.1_19650 | P25D40SH | ??? |

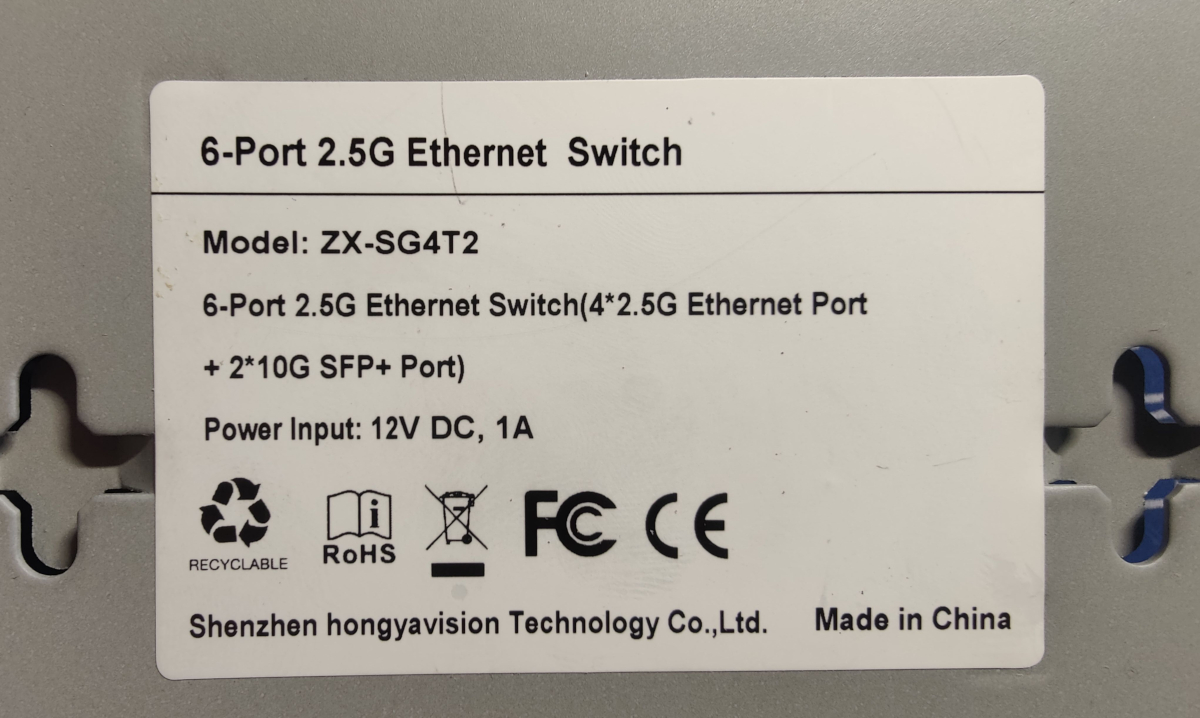

Label specifications
- Name:
- Ports:
- 4 × RJ45: 10/100/1000/2500 Mbps
- 2 × SFP+: 1000 / 2500 / 10000 Mbps
What works
The device is fully supported:
- ALL 2.5GBASE-T RJ45 ports work at 10/100/1000/2500 Mbps
- The SFP+ port supports 1G, 2.5G and 10G modules
PCB overview
Board markings
- Top silkscreen: PCB-SWTG024AS-A-V2.0.1_19650

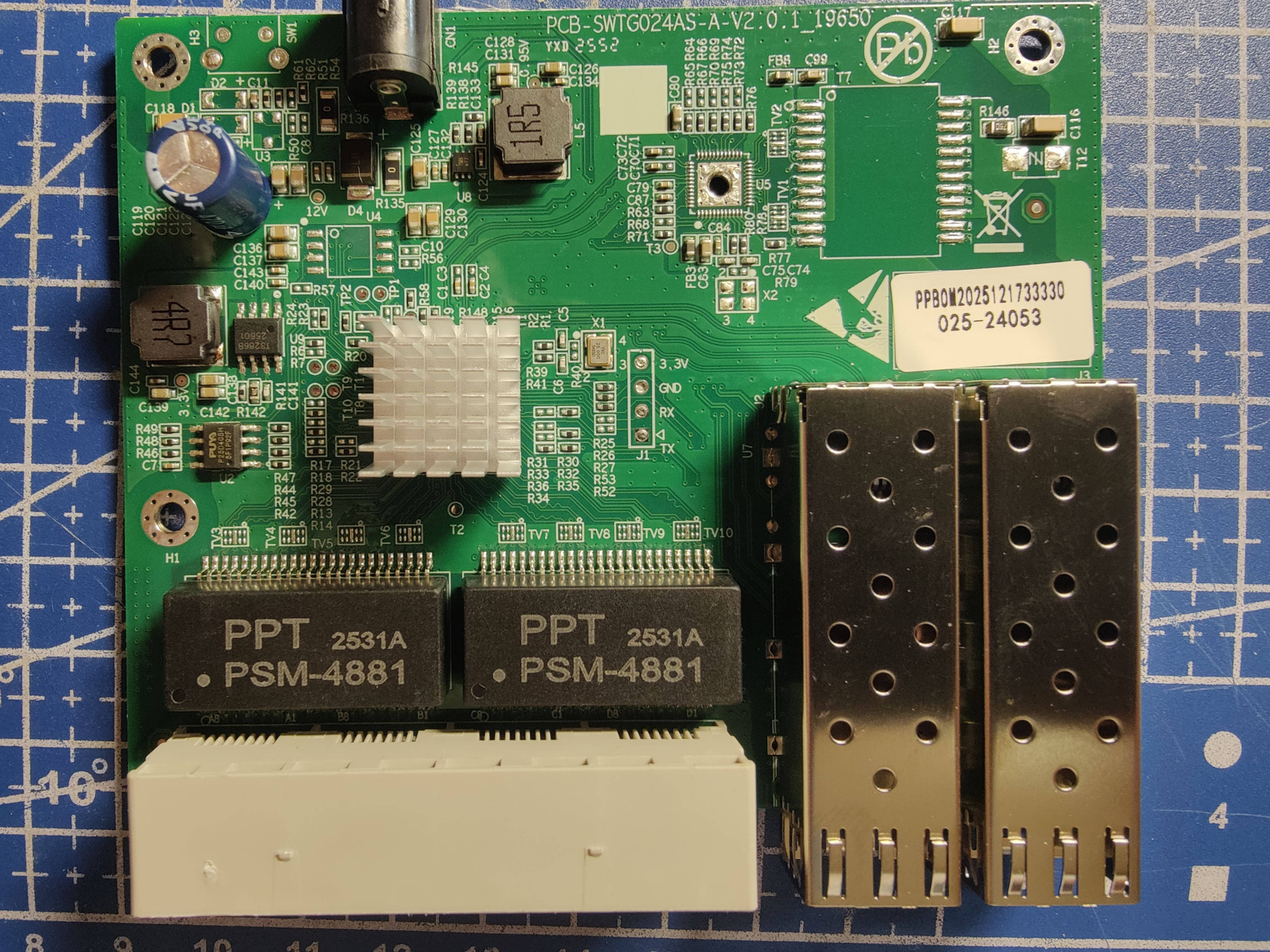

Top side

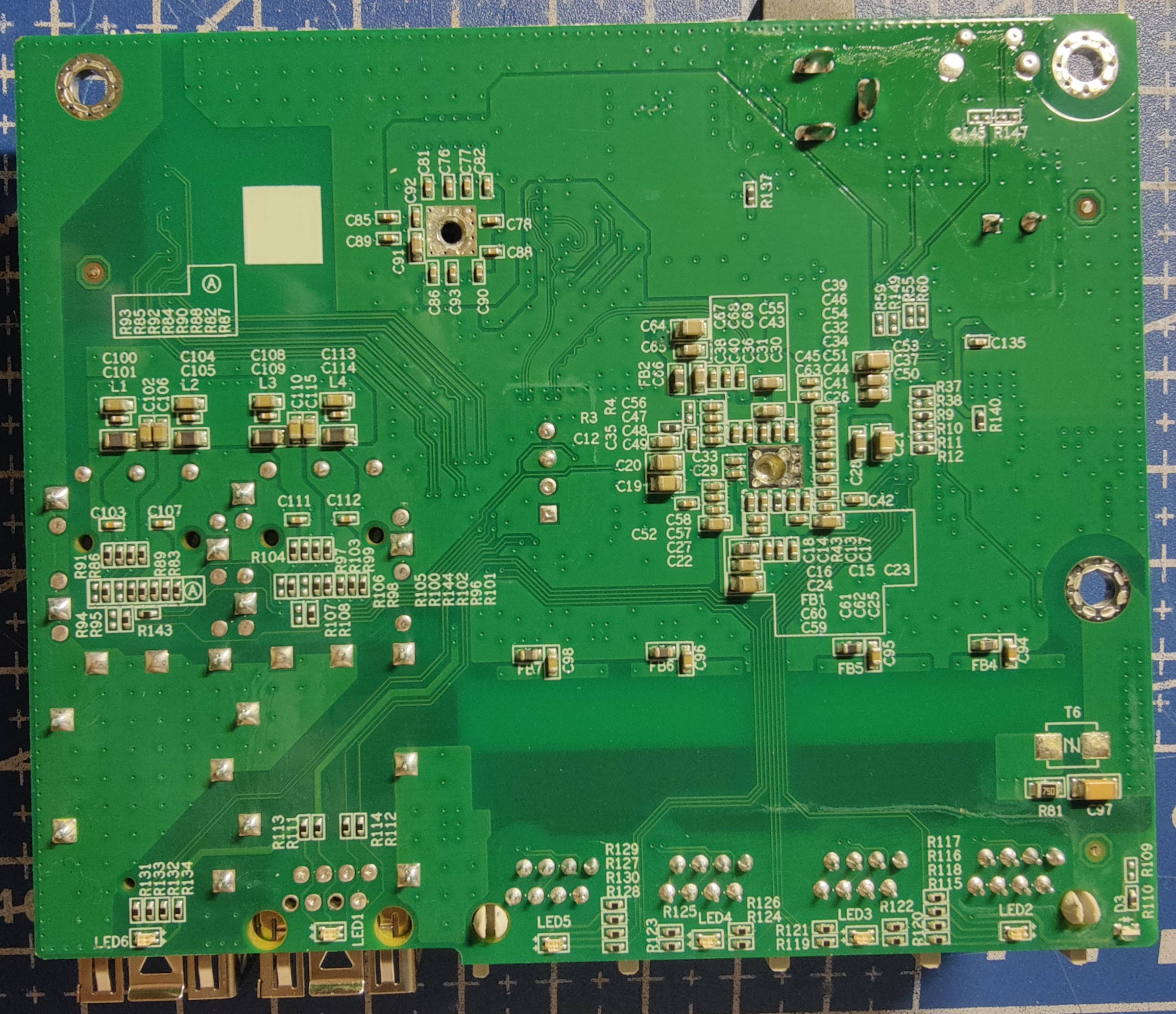

Bottom
J1, serial console
J1 pin |
Signal |
|---|---|
| 1 | 3V3 |
| 2 | GND |
| 3 | RX (Input) |
| 4 | TX (Output) |
