IG108
Following is documentation for unmanaged switch marked as IG108.
Original software is running UART on 9600 baud rate.
Using SPI clamp in-board is the only method for initial installation.
Brands
| Brand | Type | Managed | PCB | Flash | Chip RTL |
|---|---|---|---|---|---|
| Goalake | IG108 | No | PB-2132 | cFeon Q32A | 8373N + 8224N |
| Netcore | GS9 | No | PB-2132 | cFeon Q32A | 8373N + 8224N |
What works
- All eight 2.5GBASE-T RJ45 ports at 10/100/1000/2500 Mbps
- SFP port with 1G/2.5G/10G modules
- LEDs
PCB overview
Board markings
- Top silkscreen: PB-2132
Front Goalake:
Label Goalake:

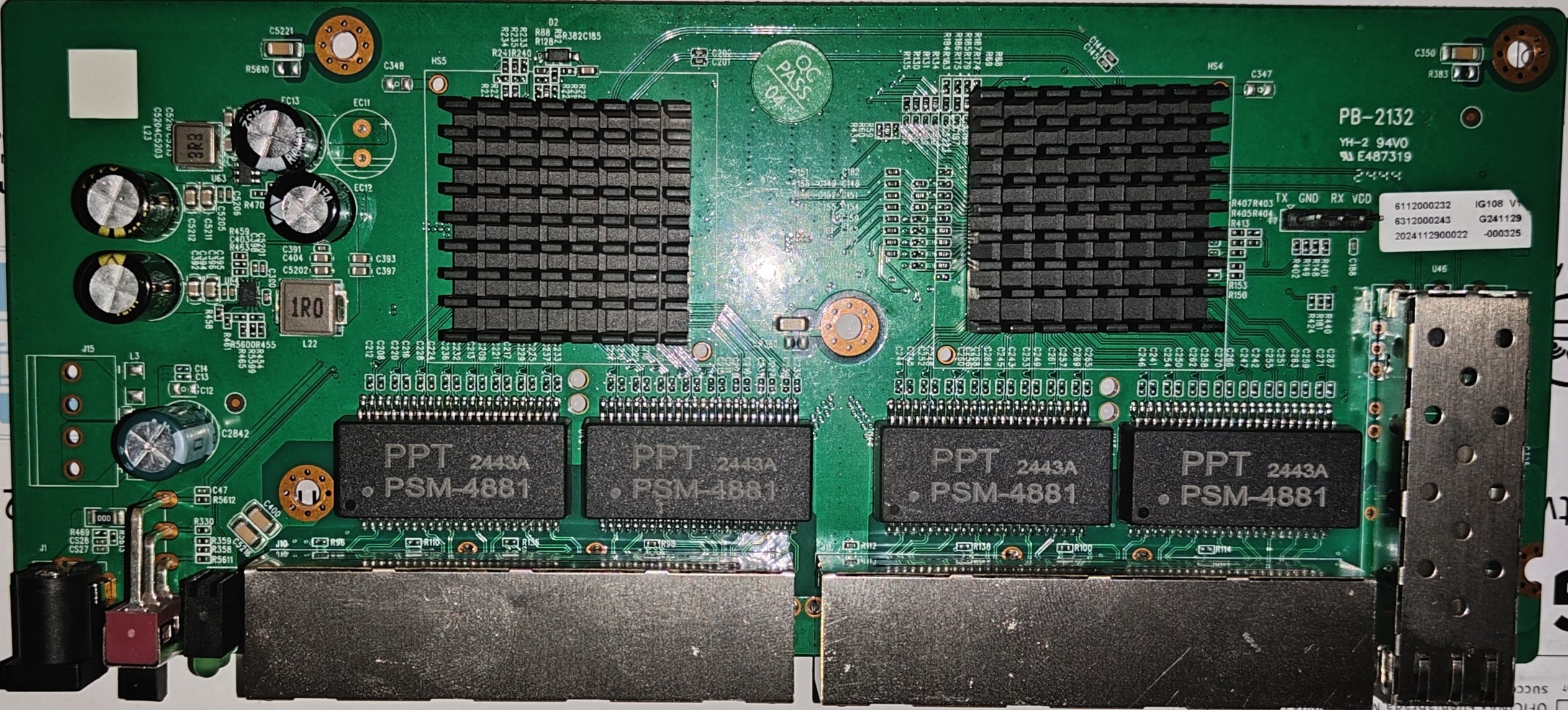

Top side:

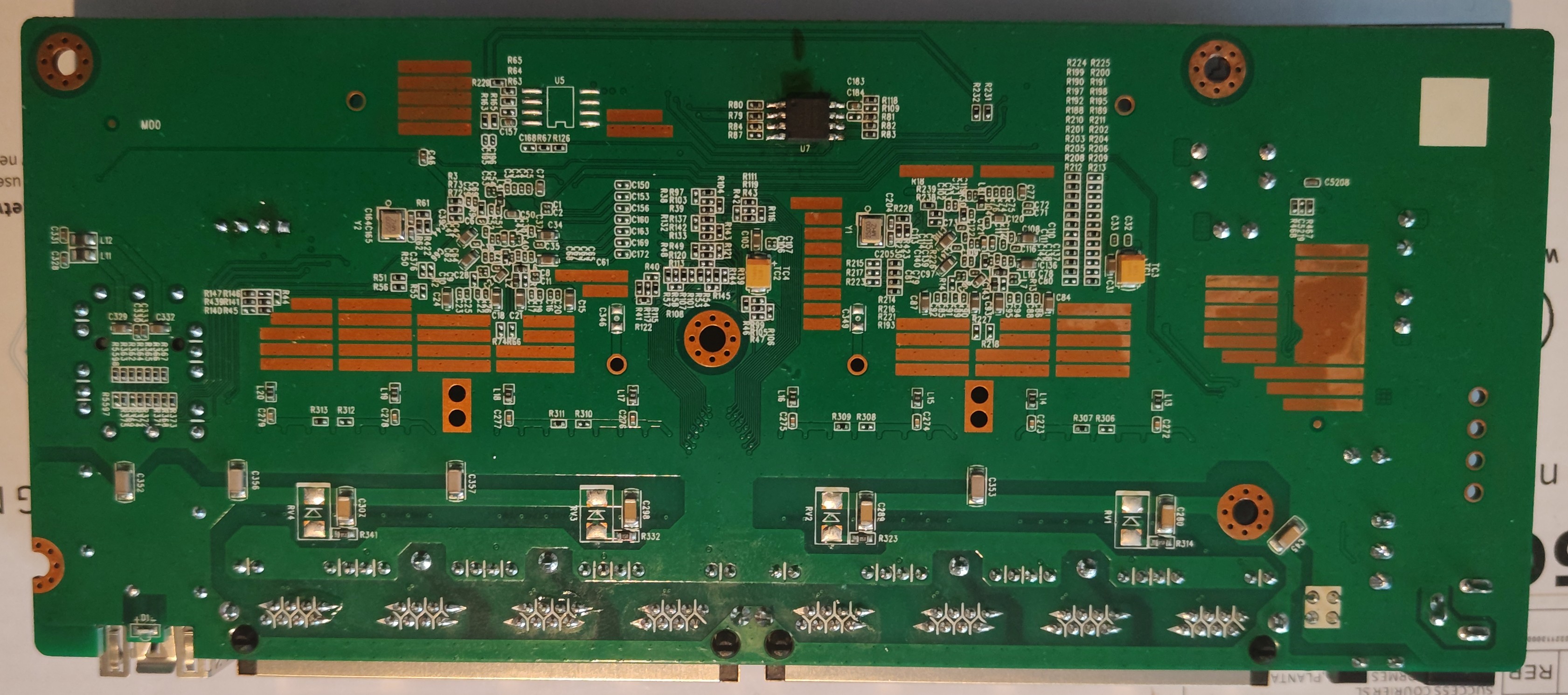

Bottom:
Serial console
The PCB has unpopulated through-holes near the SFP Port, with description of each pin, works out of the box.
- Settings: 115200 baud / 8N1 / 3.3V TTL
Power supply
Input power is delivered via barell plug, 12V 1A adapter was provided.
