FG-4GT-2SX_V2.0

Following is documentation for unmanaged switch marked as FG-4GT-2SX_V2.0.

Original software is running UART on 9600 baud rate.

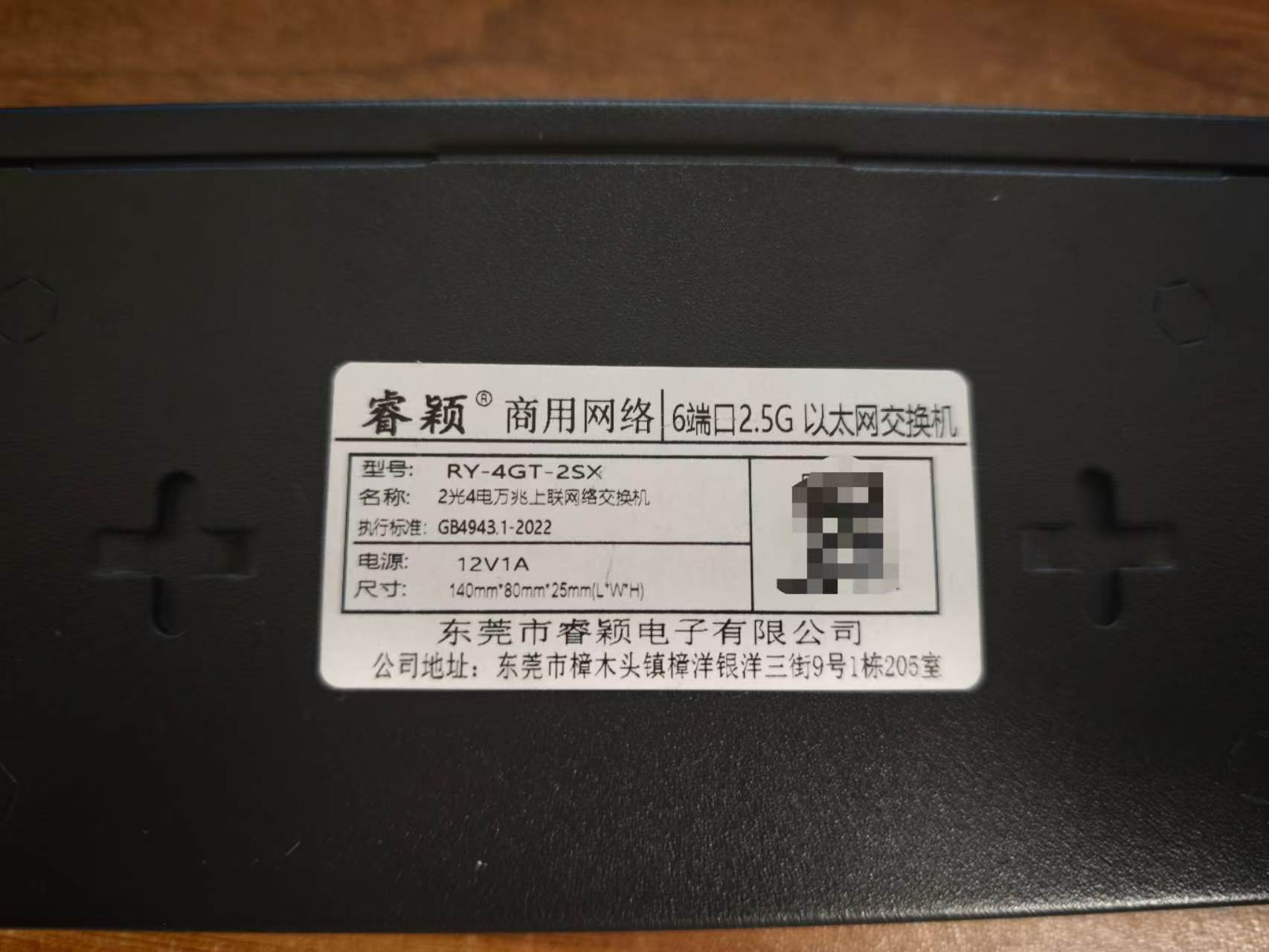

Brands

• Ruiying RY-4GT-2SX

What works

• All four 2.5GBASE-T RJ45 ports at 10/100/1000/2500 Mbps
• Both SFP ports supporting 1G, 2.5G and 10G modules
• LEDs

PCB overview

Board markings

• Top silkscreen: FG-4GT-2SX_V2.0

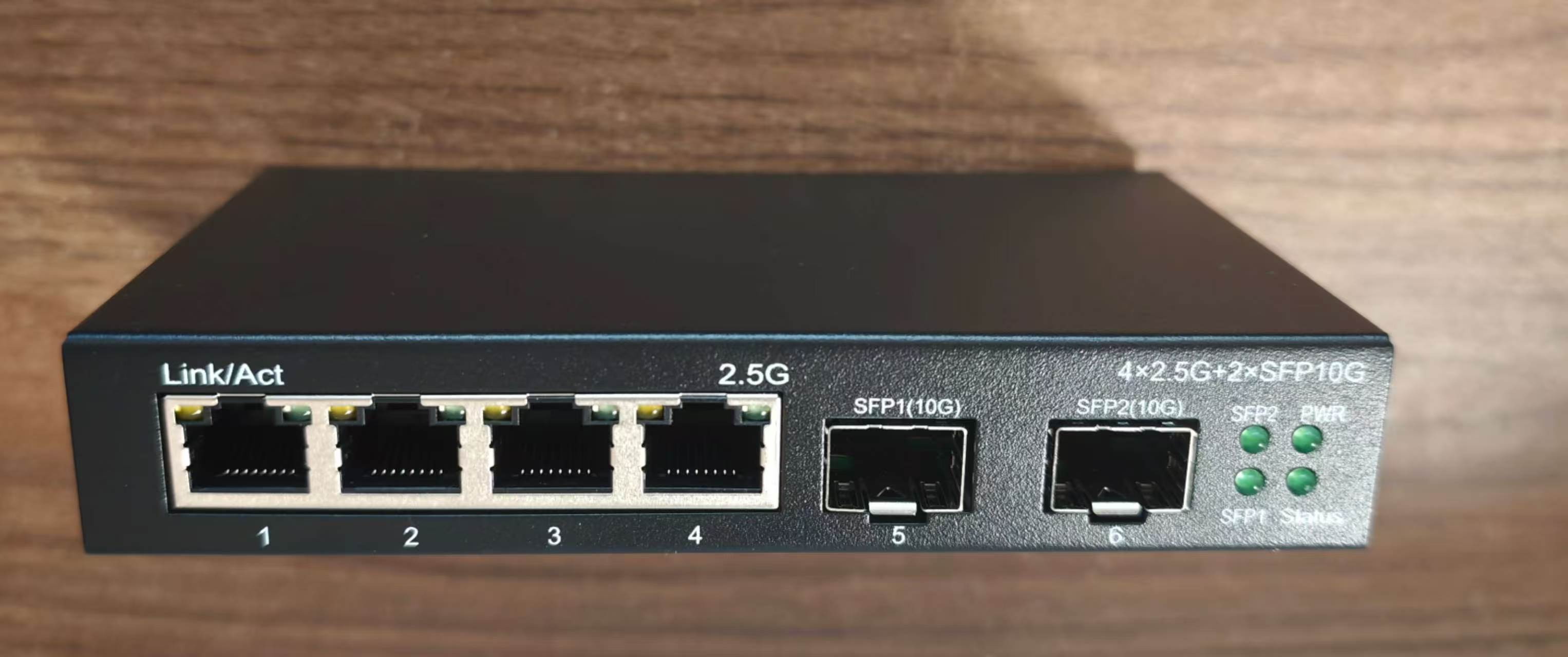

Front panel

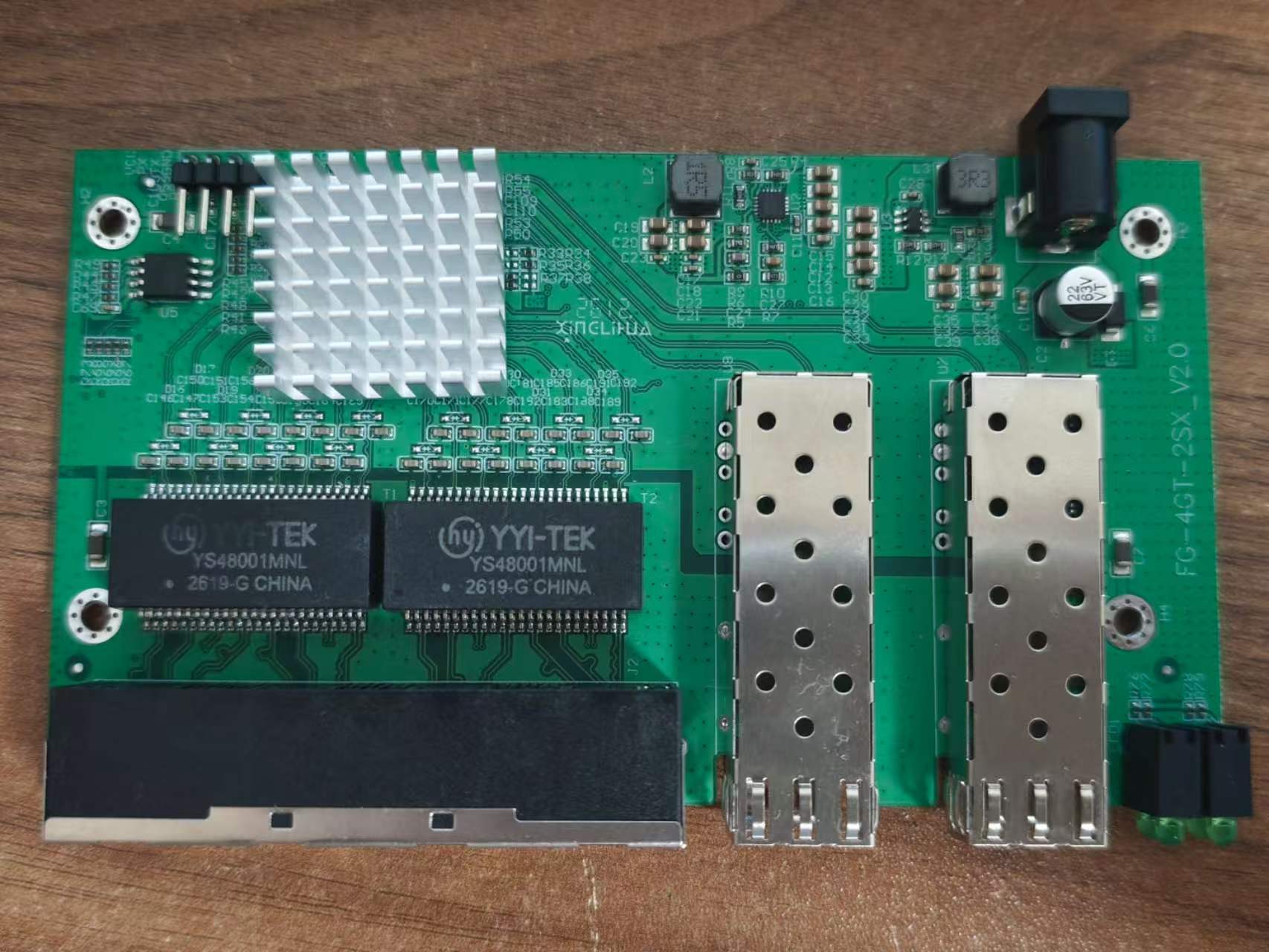

Top side

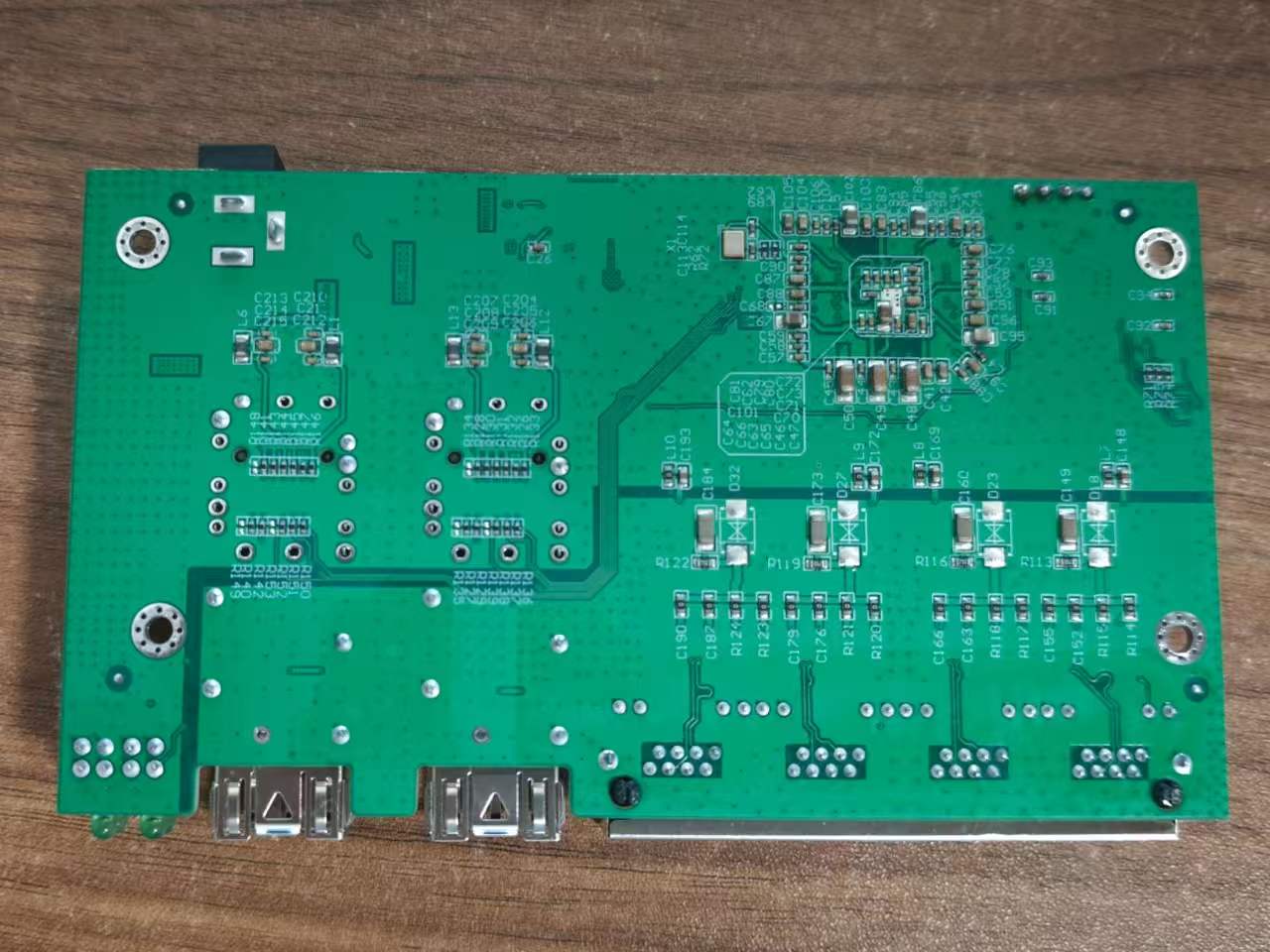

Bottom

Power supply

Input power is delivered via barell plug, 12V 1A adapter was provided.
