K0501W V2.0

This board appears for example in the Davuaz Da-K6501W switch.

The general design of the board is similar to Hi-K0402WS V3.0. However, there are several differences:

  • One SFP port is replaced by a RTL8221B 2.5G PHY
  • Only one LED is populated for the SFP port
  • No mode switch and only one flash chip
  • Older design using RTL8372 instead of RTL8372N (which also means different GPIO and LED configuration)
  • Like earlier versions of the K0402W(S) board, there is no UART

All ports and LEDs are supported. Installation is possible using a flash programmer. The BoyaMicro 25Q16BSSIG flash chip is supported by flashprog with chip name "B.25D16AS/BY25Q16BS/BY25Q16ES".

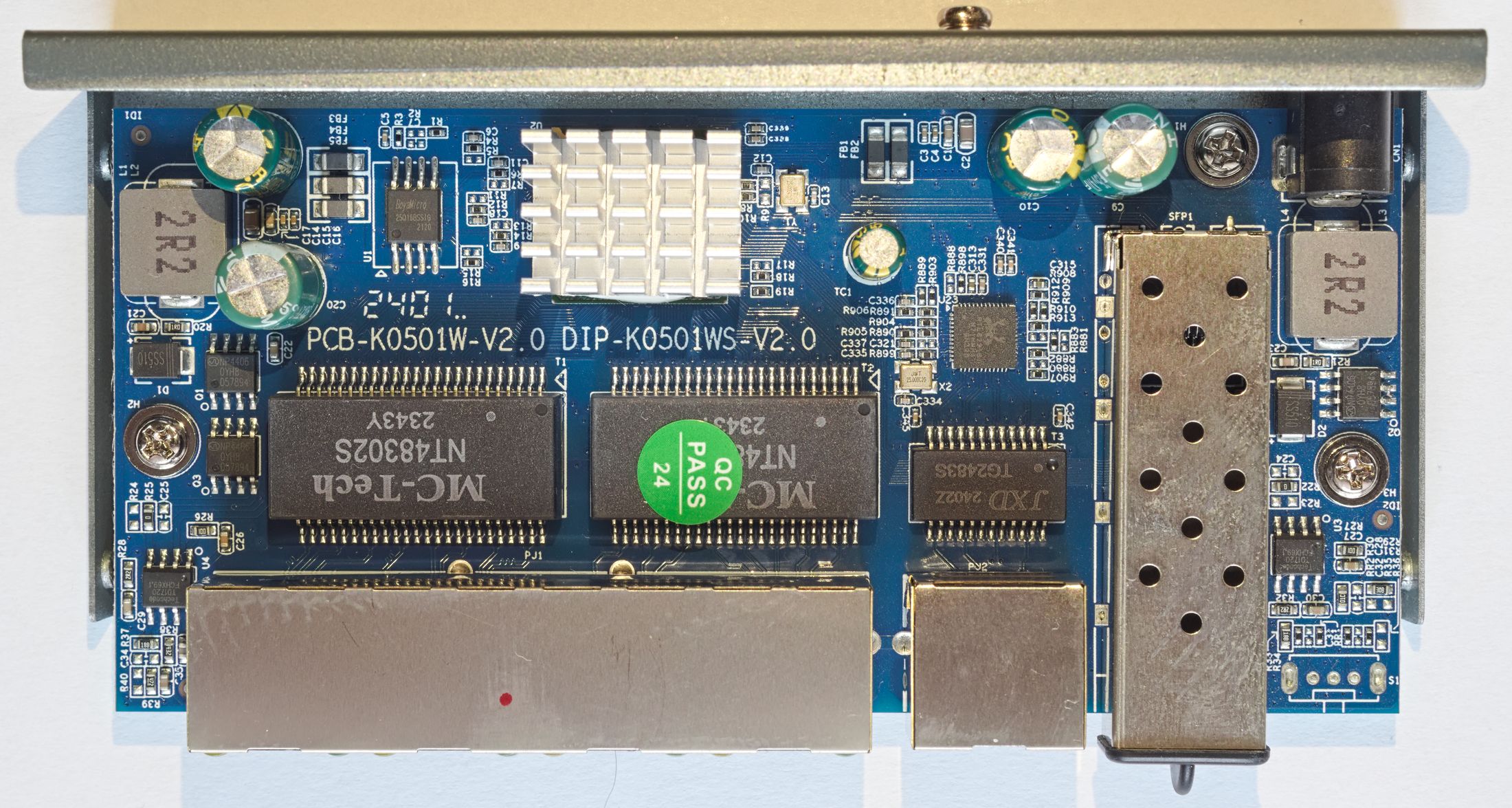

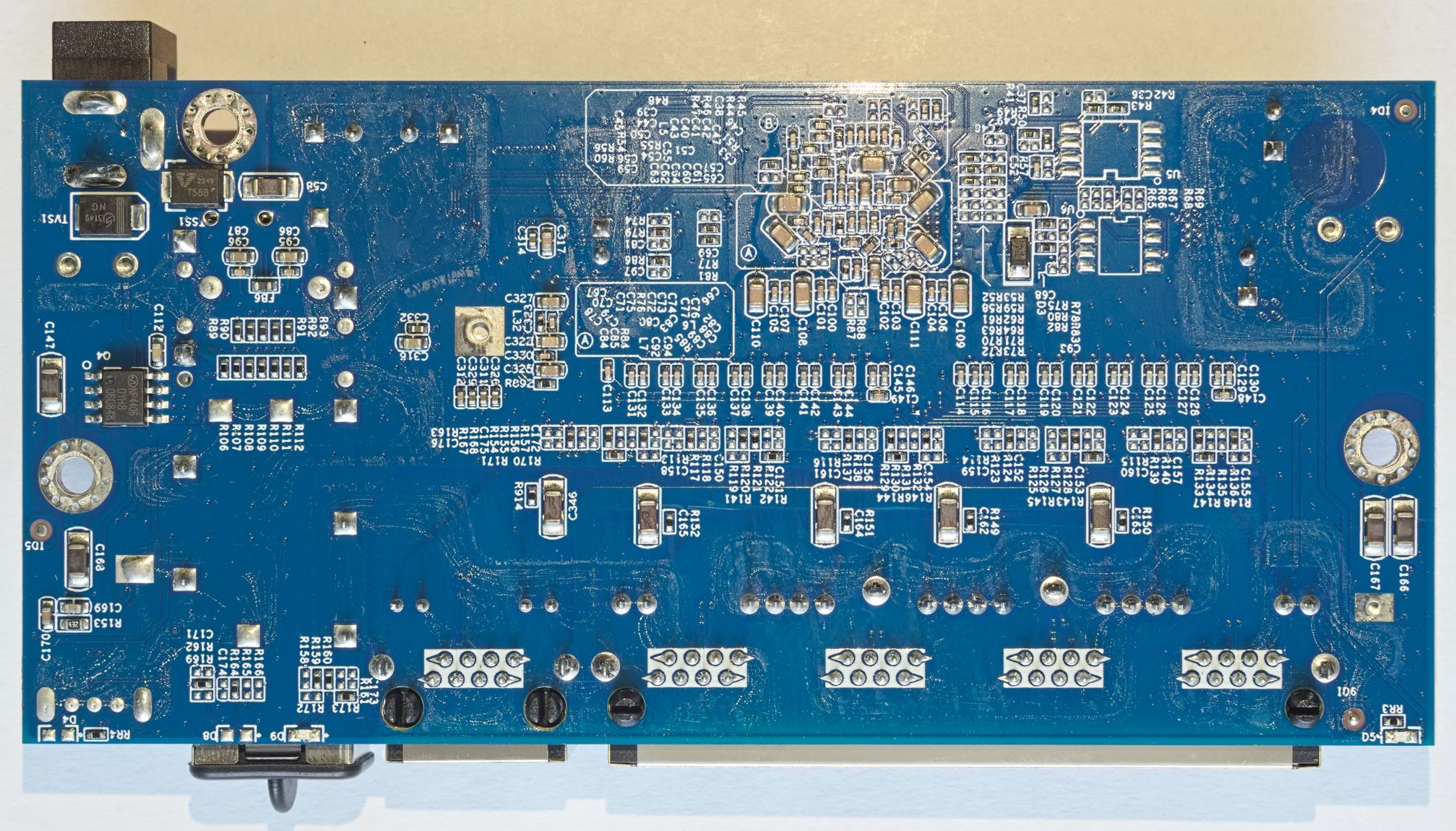

PCB pictures

The board is marked PCB-K0501W-V2.0 DIP-K0501WS-V2.0.
