TrendNet TEG-S562
Following is documentation for unmanaged switch marked as TEG-S563/EU H/W: V1.0R.
Original software is running UART on 57600 baud rate. The software does not allow to
do anything fancy via serial. There is IP configuration which can be printed as well.
There might be also some flash upload procedure, but using SPI clamp in-board seems to
be easier method.
The memory chip is Winbond W25Q16JV with 16M-bit size.
What does work
- 2.5G ports on all advertised speeds.
- SFP+ communication.
- Serial, Web UI.
Known issues
- LEDs are not initialized properly.
PCB
Manufacturer information be found on the product page.

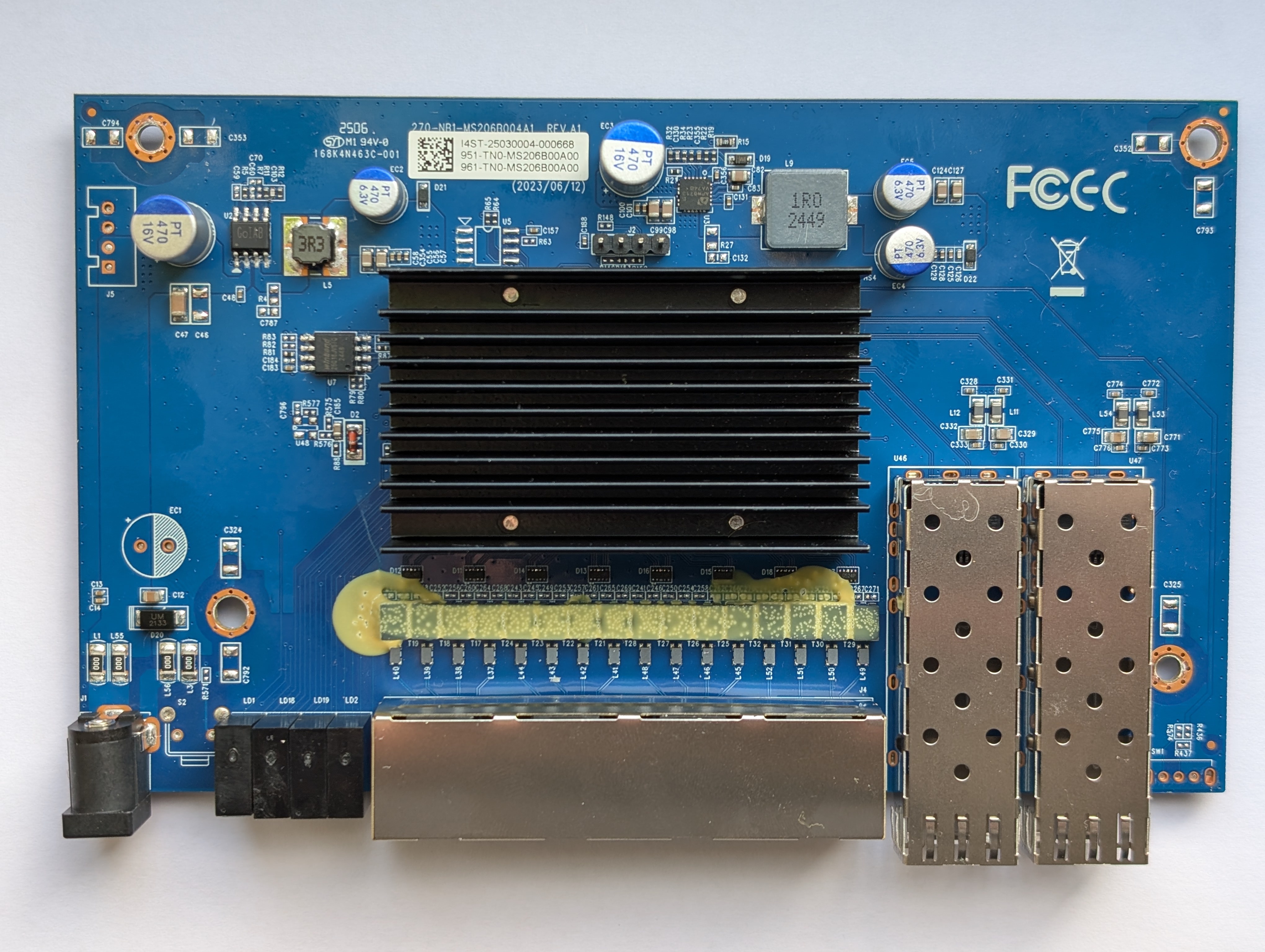

Top side

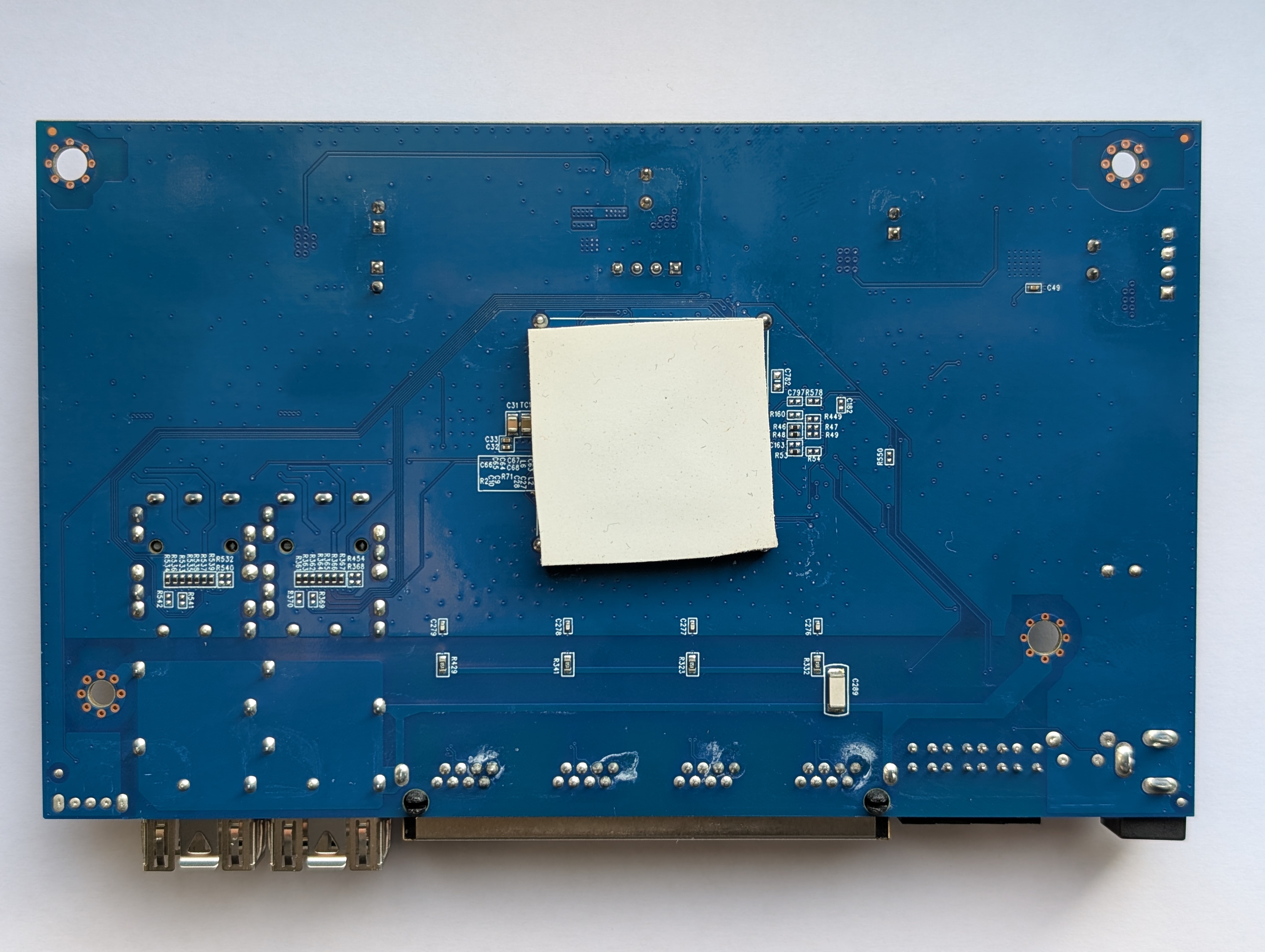

Bottom
Connectors
Port overview
┌─────────────────────────────────────────────────────────────────────────────┐
│ ┌──────────┐ ┌──────────┐ │
│ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ │ SFP │ │ SFP │ │
│ │ RJ45 │ │ RJ45 │ │ RJ45 │ │ RJ45 │ │ PORT 5 │ │ PORT 6 │ │
│ │ PORT 1 │ │ PORT 2 │ │ PORT 3 │ │ PORT 4 │ │ MAC ? │ │ MAC ? │ │
│ │ MAC 4 │ │ MAC 5 │ │ MAC 6 │ │ MAC 7 │ │ SerDes ? │ │ SerDes ? │ │
│ └─────────┘ └─────────┘ └─────────┘ └─────────┘ └──────────┘ └──────────┘ │
└─────────────────────────────────────────────────────────────────────────────┘
J2, serial console
J2 pin |
Signal |
|---|---|
| 1 | 3V3 |
| 2 | TX (Output) |
| 3 | RX (Input) |
| 4 | GND |
Note: 1 pin is square shaped, towards the power input.
J5, power pass-thru
J5 pin |
Signal |
|---|---|
| 1 | 12V |
| 2 | 12V |
| 3 | GND |
| 4 | GND |
Note: 1 pin is square shaped.
U5, I2C eeprom placeholder
J5 pin |
Signal |
|---|---|
| 1 | GND |
| 2 | GND |
| 3 | GND |
| 4 | GND |
| 5 | 3V3 |
| 6 | ??? Logic Low |
| 7 | SCL |
| 8 | SDA |
SOC I2C address is 0x5c.
SW1 GPIO switch?
Not populated but looks like a switch for selecting GPIO level. Missing resistors in place.
GPIO mapping unknown.
S2 Reset ciruit
Not populated but looks like a button can be added on S2 connector,
requires additional R571 resistor which will pull signal to ground.
GPIO mapping unknown.
GPIO
| HEX VAL. | GPIO | When | GPIO | When |
|---|---|---|---|---|
| 00000001 | GPIO00 | GPIO32 | ||
| 00000002 | GPIO01 | GPIO33 | ||
| 00000004 | GPIO02 | GPIO34 | Random changes | |
| 00000008 | GPIO03 | GPIO35 | ||
| 00000010 | GPIO04 | GPIO36 | SFP1 Present | |
| 00000020 | GPIO05 | GPIO37 | SFP1 RX Los | |
| 00000040 | GPIO06 | GPIO38 | SFP2 Present | |
| 00000080 | GPIO07 | GPIO39 | ||
| 00000100 | GPIO08 | GPIO40 | ||
| 00000200 | GPIO09 | GPIO41 | ||
| 00000400 | GPIO10 | GPIO42 | Random changes | |
| 00000800 | GPIO11 | GPIO43 | ||
| 00001000 | GPIO12 | PORT1 Link | GPIO44 | |
| 00002000 | GPIO13 | PORT1-LED-GREEN | GPIO45 | |
| 00004000 | GPIO14 | PORT1-LED-AMBER | GPIO46 | SFP1 I2C CLK |
| 00008000 | GPIO15 | PORT2 Link | GPIO47 | SFP1 I2C SDA |
| 00010000 | GPIO16 | PORT2-LED-GREEN | GPIO48 | SFP2 I2C CLK |
| 00020000 | GPIO17 | PORT2-LED-AMBER | GPIO49 | SFP2 I2C SDA |
| 00040000 | GPIO18 | PORT3 Link | GPIO50 | SFP2 Rx LOS |
| 00080000 | GPIO19 | PORT3-LED-GREEN | GPIO51 | SFP1 TX Disable |
| 00100000 | GPIO20 | PORT4-LED-AMBER | GPIO52 | |
| 00200000 | GPIO21 | PORT4 Link | GPIO53 | |
| 00400000 | GPIO22 | PORT4-LED-GREEN | GPIO54 | SFP2 TX Disable |
| 00800000 | GPIO23 | PORT4-LED-AMBER | GPIO55 | |
| 01000000 | GPIO24 | GPIO56 | ||
| 02000000 | GPIO25 | GPIO57 | ||
| 04000000 | GPIO26 | GPIO58 | ||
| 08000000 | GPIO27 | GPIO59 | ||
| 10000000 | GPIO28 | GPIO60 | ||
| 20000000 | GPIO29 | GPIO61 | ||
| 40000000 | GPIO30 | GPIO62 | ||
| 80000000 | GPIO31 | GPIO63 |
LEDs
Leds are not yet working as in stock firmware. This will be handled later.
Ports 1-4 are amber for 100M/1G links, Green for 2.5G. Port 5-6 are green for 10G/1G link. Both should flash on activity.
| NAME | When active |
|---|---|
| PWR | 3V3 |
| SFP1 | |
| SFP2 | |
| PORT1-LED-GREEN | - |
| PORT2-LED-GREEN | PORT2 2.5G |
| PORT3-LED-GREEN | PORT3 2.5G |
| PORT4-LED-GREEN | PORT4 2.5G |
| PORT1-LED-AMBER | PORT1 1GB/100M |
| PORT2-LED-AMBER | PORT2 1GB/100M |
| PORT3-LED-AMBER | PORT3 1GB/100M |
| PORT4-LED-AMBER | PORT4 1GB/100M |
Power supply
Input power is delivered via barell plug, 12V 1A adapter was provided.
Board has two supply rails. 0.95 and 3.3 volt.
0.95 Core Voltage
Voltage is made by a APW8713 (U3).
3.3 Voltage
Voltage is crated regulated by chip marke as GoIAT (U2).
SFP SPI
There is separate clock and data lines for both SFP modules. MSDA/MSCK 0 and 1 need to be enabled.
SFP1 slot is connected to SPI0. SFP2 slot is connected to SPI1.
