Keeplink KP-9000-6XH-X2

Following is documentation for unmanaged switch marked as KP-9000-6XH-X2.

Using SPI clamp in-board is the only method for initial installation.

Label specifications

Name: 4X 2.5G RJ45 Port + 2 X 10G SFP+ Port
Model: KP-9000-6XH-X2
Ports:
- 4 × RJ45: 10/100/1000/2500 Mbps
- 2 × SFP+: 1000 / 2500 / 10000 Mbps

What works

All four 2.5GBASE-T RJ45 ports at 10/100/1000/2500 Mbps
SFP port with 10G modules
LEDs
untested due to missing Hardware: SFP+ ports equipped with 1G or 2.5G SFPs.

Hardware overview

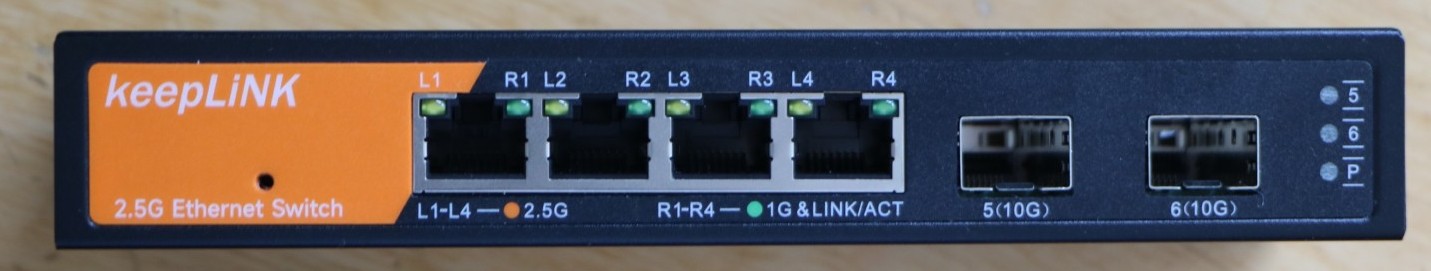

Front side:

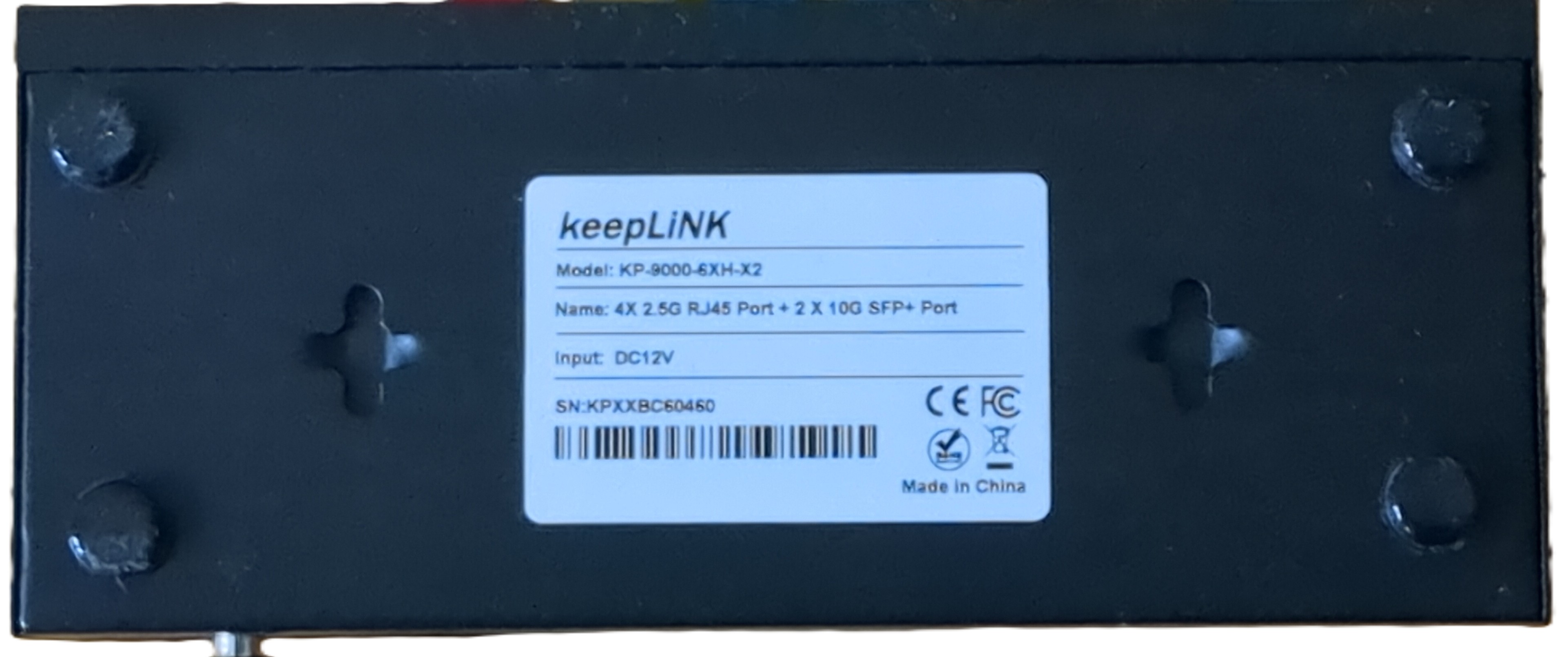

Label:

PCB overview

Board markings

Top silkscreen: 2M-PCB43-V2.1

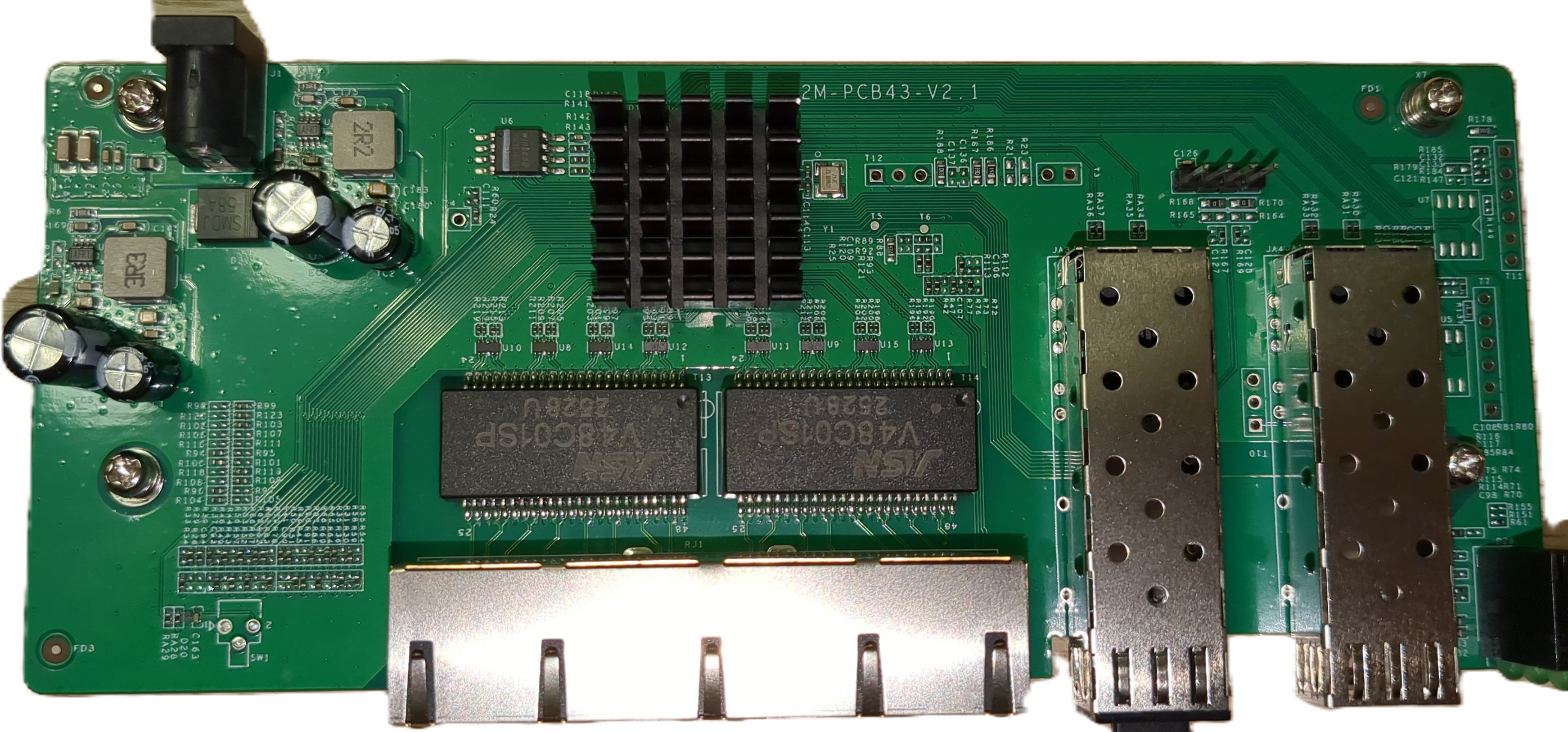

Top side

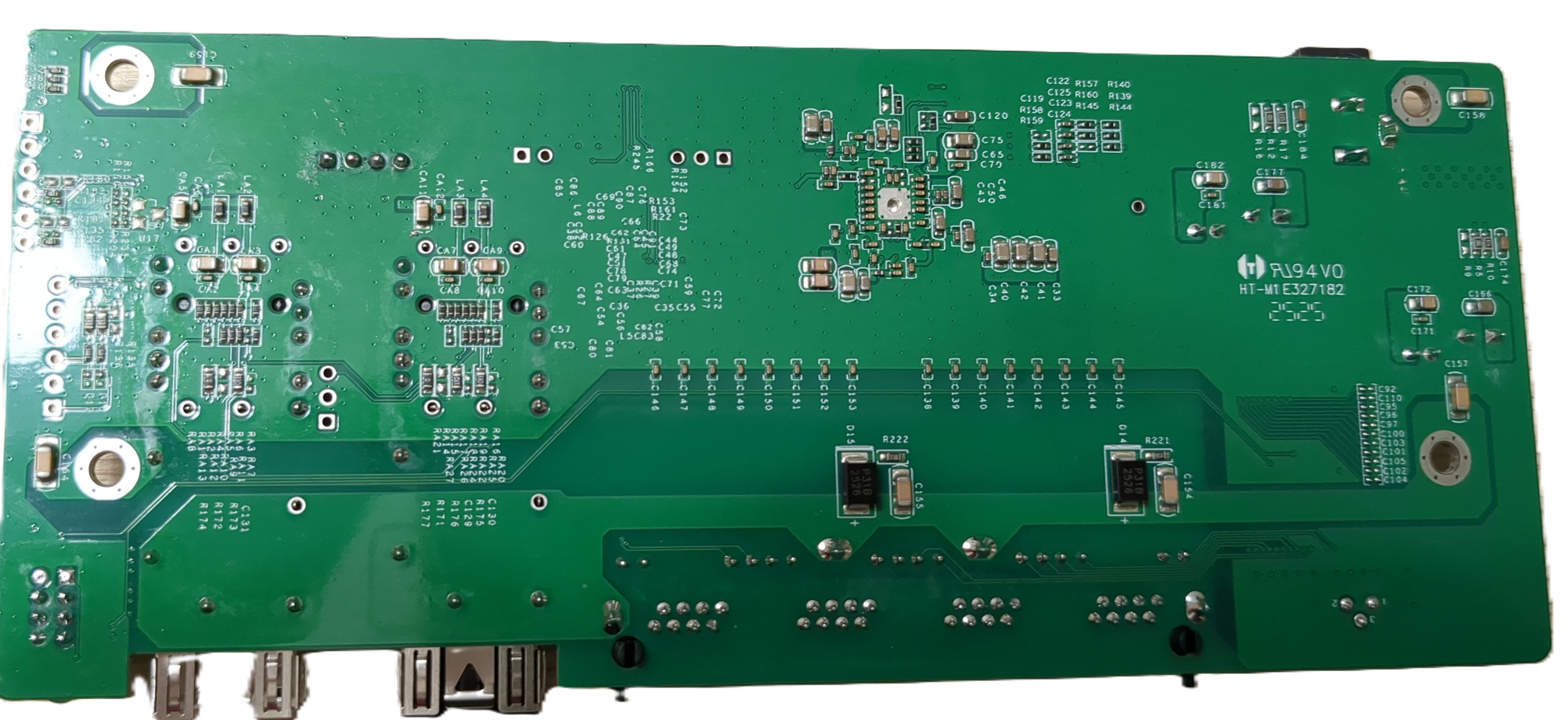

Bottom

Reset Button

There's an unpopulated Reset button on the front left side of the PCB. It can easily be soldered, you'll need an 4.5mmx4.5mm 90° button switch with a 3-pin footprint. I got mine here: https://de.aliexpress.com/item/1005007295346702.html The front case has already the hole in the metal case, you just have to punch a hole through the foil.

Power supply

Input power is delivered via barell plug, 12V 1A adapter was provided.
