logicog
dc16b25d62
The SWTG018AS-A V2.0 is an 8x2.5GBit/s port + 1 SFP+ port unmanged device
It is sold in an unbranded casing e.g. by Ampcom.
Hardware:
SoC: RTL8373N
Additional PHY: RTL8224
Flash: Puya P25D40SH (4MBit, slimmer, not standard SOP-8 package!)
LEDs: 1 Green + 1 Orange per Ethernet port (green designates 2.5GBit)
1 Green LED for the SFP+ port
The photos already show a modified PCB: Unpopulated resistors R52 and R53
have been bridged in order to enable the serial console. The smaller flash
memory chip at U2 has been replaced with a Windbond 128MBit standard-sized
SOIC-8 chip in order to easily use SOIC clamps to flash the device. Also
the serial header has been populated.
1.5 KiB
1.5 KiB
SWTG018AS-A V2.0
The following is a documentation for the unmanaged switch marked as SWTG018AS-A V2.0.
It is e.g. sold under the Ampcom brand, but no branh-markings are found on the device.
The original software is running UART on 9600 baud rate.
Using a SOIC clamp in-board is the only method for initial installation.
The board has a single flash chips BS with 4M-bit size. The front switch, switches between the two flash chips.
These can be programed independently by using said switch - so it is e.g. possible to run the original and new firmware in parallel.

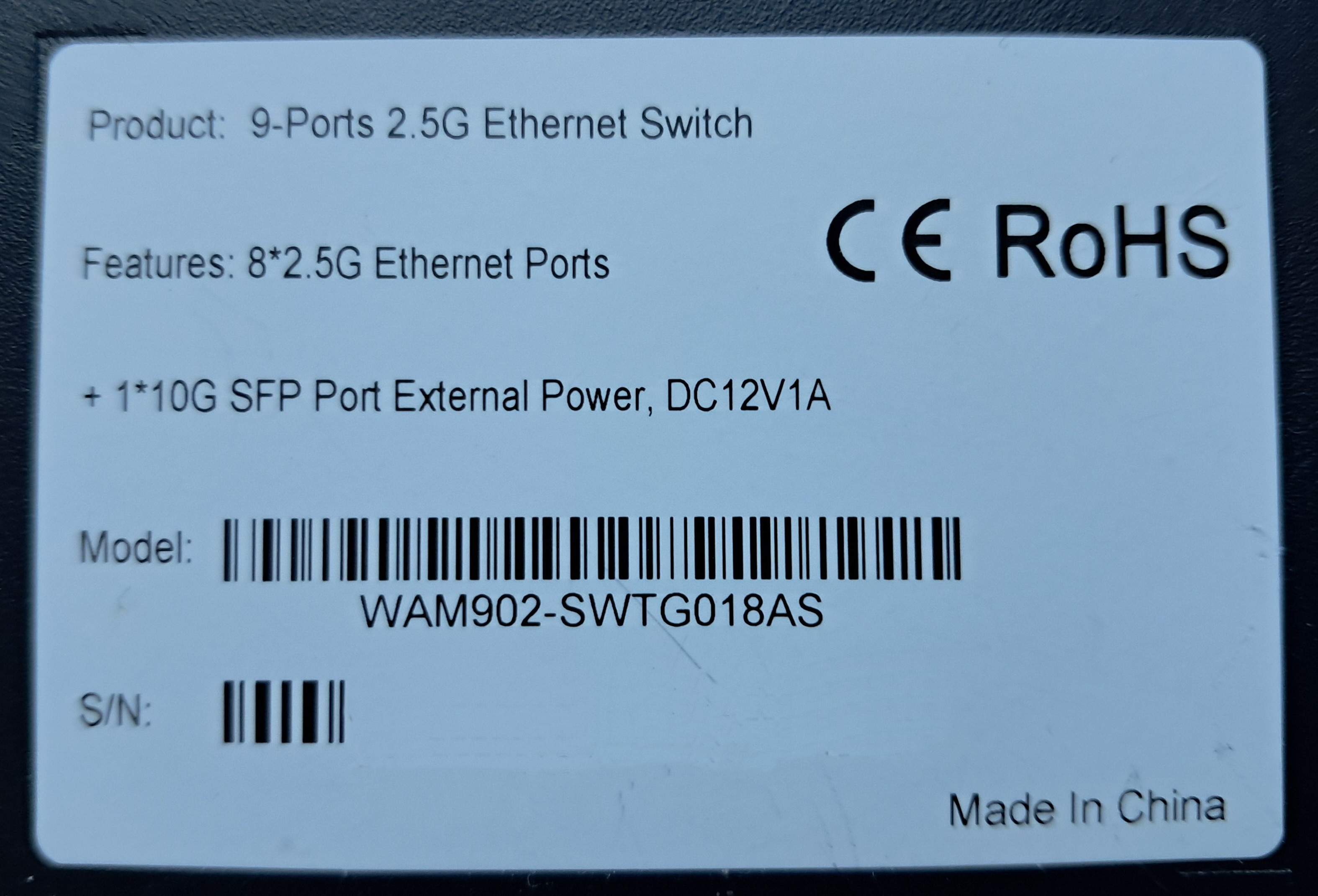

Label specifications
- Name: 9-Ports 2.5G Ethernet Switch
- Ports:
- 8 × RJ45: 10/100/1000/2500 Mbps
- 1 × SFP+: 1000 / 2500 / 10000 Mbps
- Power: 12V DC, 1A barrel connector
What works
The device is fully supported:
- All 8 2.5GBASE-T RJ45 ports work at 10/100/1000/2500 Mbps
- The SFP+ port supports 1G, 2.5G and 10G modules
- LEDs work with the same indiciations as the OEM firmware
PCB overview
Board markings
- Top silkscreen: SWTG018AS-A-V2.0.1_19649
Top side
Bottom
J1, serial console
J1 pin |
Signal |
|---|---|
| 1 | 3V3 |
| 2 | GND |
| 3 | RX (Input) |
| 4 | TX (Output) |
Power supply
Input power is delivered via barell plug, 12V 1A adapter was provided.
