笙笙宝宝 0fe323b12f machine: add the F7008-2.5 (GPOE-V1.2) 8+1 target ...

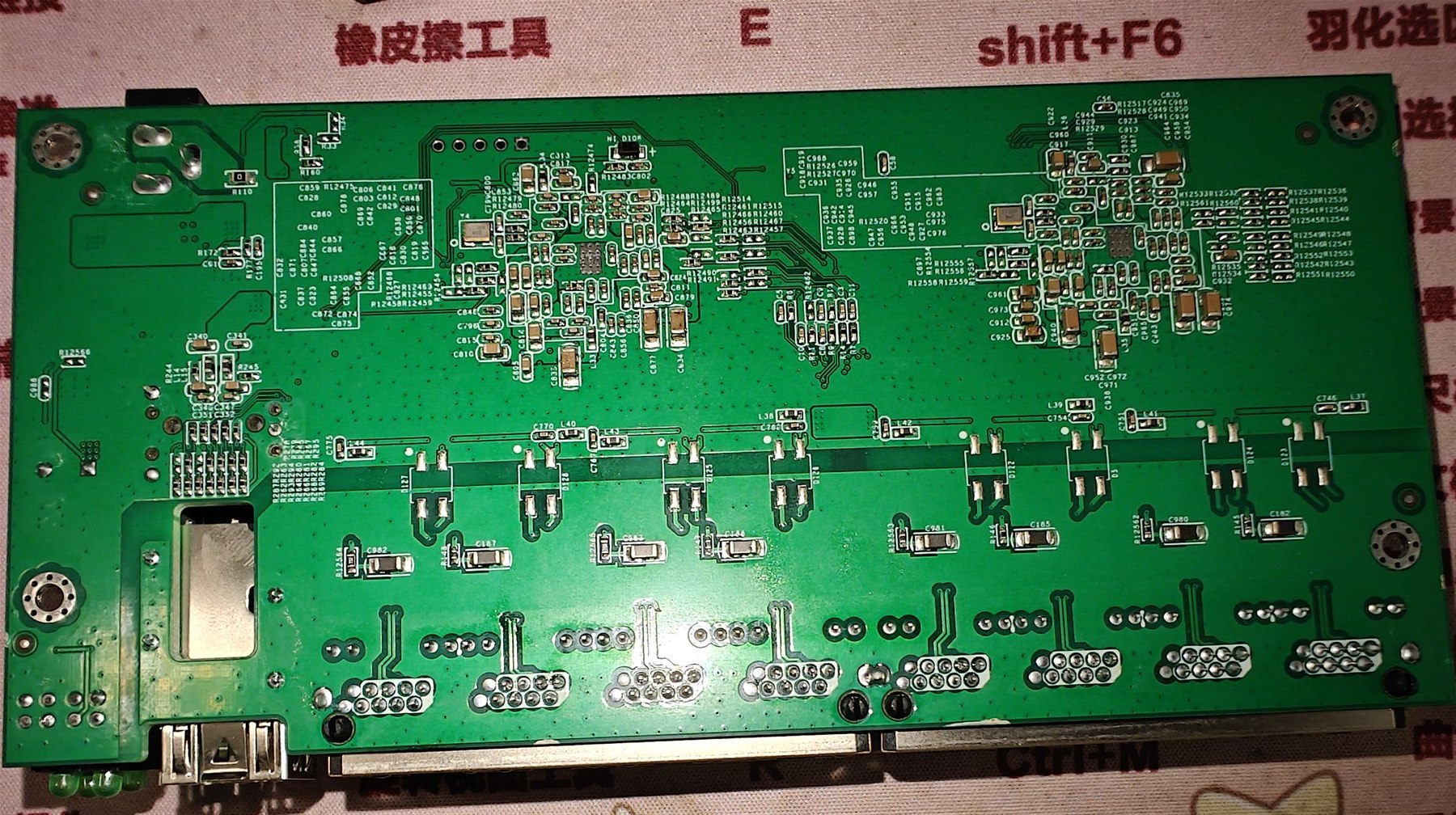

Add support for the F7008-2.5 board (PCB F7008-2.5GPOE-V1.2), an
RTL8373N + RTL8224N design with eight 2.5GBASE-T ports and one SFP+ cage.

The LED pads are not wired in port order, so the generic DEFAULT_8C_1SFP
target lights the wrong lamp on this board. The pad to lamp map was
measured on the hardware and is documented in doc/devices/F7008-2.5.md.

The green lamp marks a 2.5G link, the yellow lamp blinks while data flows.
