Sirivision SR-S25G2109F (S25G1109FP V1.3)

RTL8373 (non-N) with an RTL8224 quad 2.5G PHY: 8 × 2.5G RJ45 + 1 × SFP+, 2 MB flash, no PoE.

Label specifications

Item	Value
Manufacturer	Sirivision
Model	SR-S25G2109F
Ports	8 × RJ45 10/100/1000/2500 Mbps, 1 × SFP+ 1G/2.5G/10G
Power input	12 V DC, 1.5 A
Stock firmware	version 1.0.8.0
Stock defaults	IP 192.168.1.199, user `admin`, password `admin`
Serial number	001008130002003A000005 (also on the PCB barcode sticker)

The label does not carry a MAC address. After a factory initialisation the stock firmware uses exactly the values printed on the label.

PCB silkscreen and naming

Top side: S25G1109FP V1.3 SIRIVISION. That model name belongs to an unmanaged PoE switch; this board omits the PoE section entirely. What is actually shipped is the label model SR-S25G2109F: a simply managed, non-PoE switch. Its stock firmware provides a web interface, but it responds very slowly.

CPU, PHY and flash

Part	Identification
SoC	RTL8373, non-N: `regget 4` returns `0x83730000` and the boot console prints `Detecting CPU: RTL8373`
PHY	RTL8224, reported as `RTL8224 ID: 0x82240000`

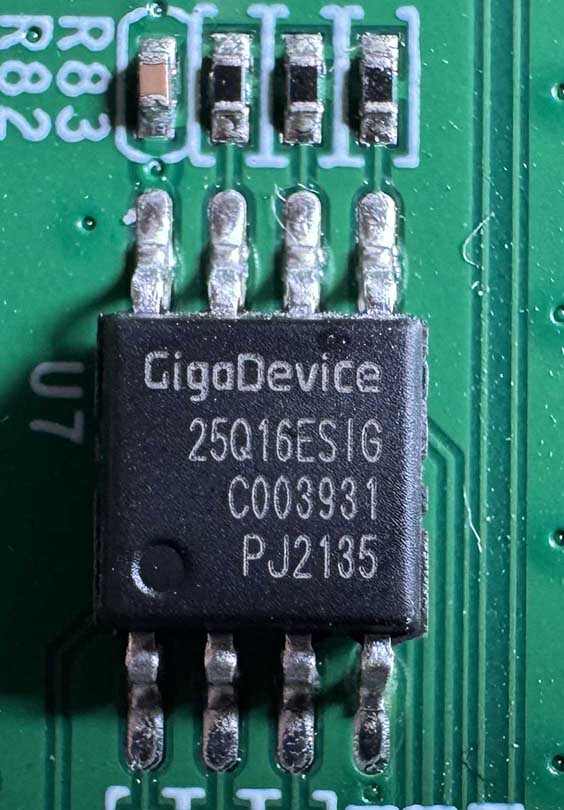

Flash	GigaDevice 25Q16ESIG (U7), 2 MB, JEDEC id `c8 40 15`

The two large ICs sit under soldered heatsinks, their markings are not readable.

Build

make MACHINE=S25G1109FP_V1_3 CI=1

The resulting image can be uploaded through the web interface (System page) or the stock web UI.

Port mapping

Front port	ASIC MAC	Interface
1–8	0–7	RJ45 2.5G
9	8	SFP+ (SDS1)

Board signals

Function	GPIO
SFP detect (ModAbs)	30, low with a module inserted
SFP LOS	37, high without light
SFP TX disable	not connected, `GPIO_NA`
SFP I2C	SDA 39 / SCL 40, `I2CBUS(GPIO39_I2C_SDA4, GPIO40_I2C_SCL3_MDC1)`
Reset button	54

ModAbs and LOS are separate signals here: GPIO30 tells whether a module is inserted, GPIO37 whether it receives light, so a module is identified even before the link comes up and loss of signal is reported. GPIO38 and GPIO48, which the 8+1 reference boards use for ModAbs and for the reset button, never change on this board; with GPIO38 as ModAbs the firmware believed a module was permanently present and retried the I2C read forever.

Serial console: the stock firmware runs the loader at 57600 baud and the runtime at 9600 baud, RTLPlayground uses 115200.

Front panel

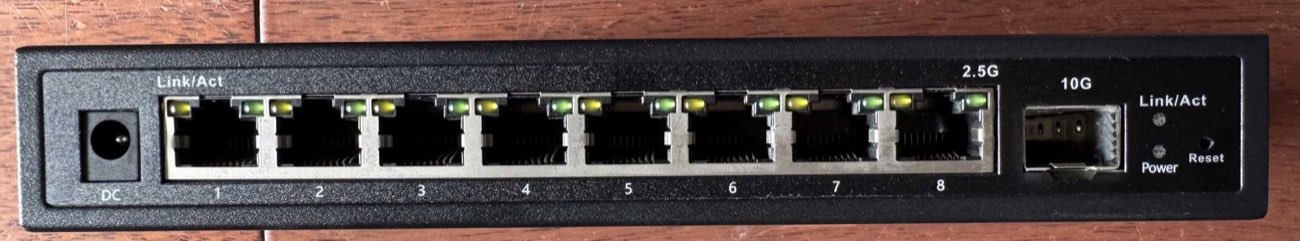

Each copper port has two LEDs, labelled Link/Act (left, yellow) and 2.5G (right, green). The SFP cage has a single green Link/Act LED; next to it are a Power LED and the Reset button.

LED configuration

Copper ports use LED set 0, the SFP port uses LED set 1:

Set	Function 0 (left / SFP)	Function 1 (right)
SET0	all speeds, link with activity	2.5G link
SET1	all speeds, link with activity	not populated

The board is wired in the stock port order — LED pin 3n+m belongs to port n+1, LED function m — so the mux table is the chip default with a single change: the SFP LED sits on pin 25 and is driven by LED function 0, while the default table maps pin 25 to function 1, which is unpopulated in SET1. Without that change the SFP LED stays dark.

A speed condition alone leaves an LED dark, LEDS_LINK has to be set as well.

Reset button

Hold time while running	Effect
less than 3 s	no action
3–10 s	reset the switch chip, the firmware reboots (~20 s of downtime)
more than 10 s	additionally restore the default configuration

The system LED blinks slowly while the button is held. Holding the button during power-up instead waits for the release and restores the default configuration when it is released after 10–30 s.

MAC address

The factory MAC sits at 0x1FC000, six bytes followed by 0xFF padding. The stock value is a locally administered address (1A:5D:23:47:4D:EB), which the firmware rejects, so the device runs with a UUID-derived MAC (06:…). A valid globally administered address stored there is used instead.

What works

all eight 2.5GBASE-T ports at 10/100/1000/2500 Mbps
SFP+ with 10G and 1G modules, including DDM data where the module provides it
- 10G: Finisar FCBG110SD1C05 AOC (no DDM), rate 0x67, SerDes mode 1a
- 1G: ETU ESB5312-3SCD20 (DDM), rate 0x0d, SerDes mode 04
LEDs, module insert/remove detection, loss of signal reporting, reset button
