# FG-4GT-2SX_V2.0

Following is documentation for unmanaged switch marked as `FG-4GT-2SX_V2.0`.

Original software is running UART on 9600 baud rate.

## Brands

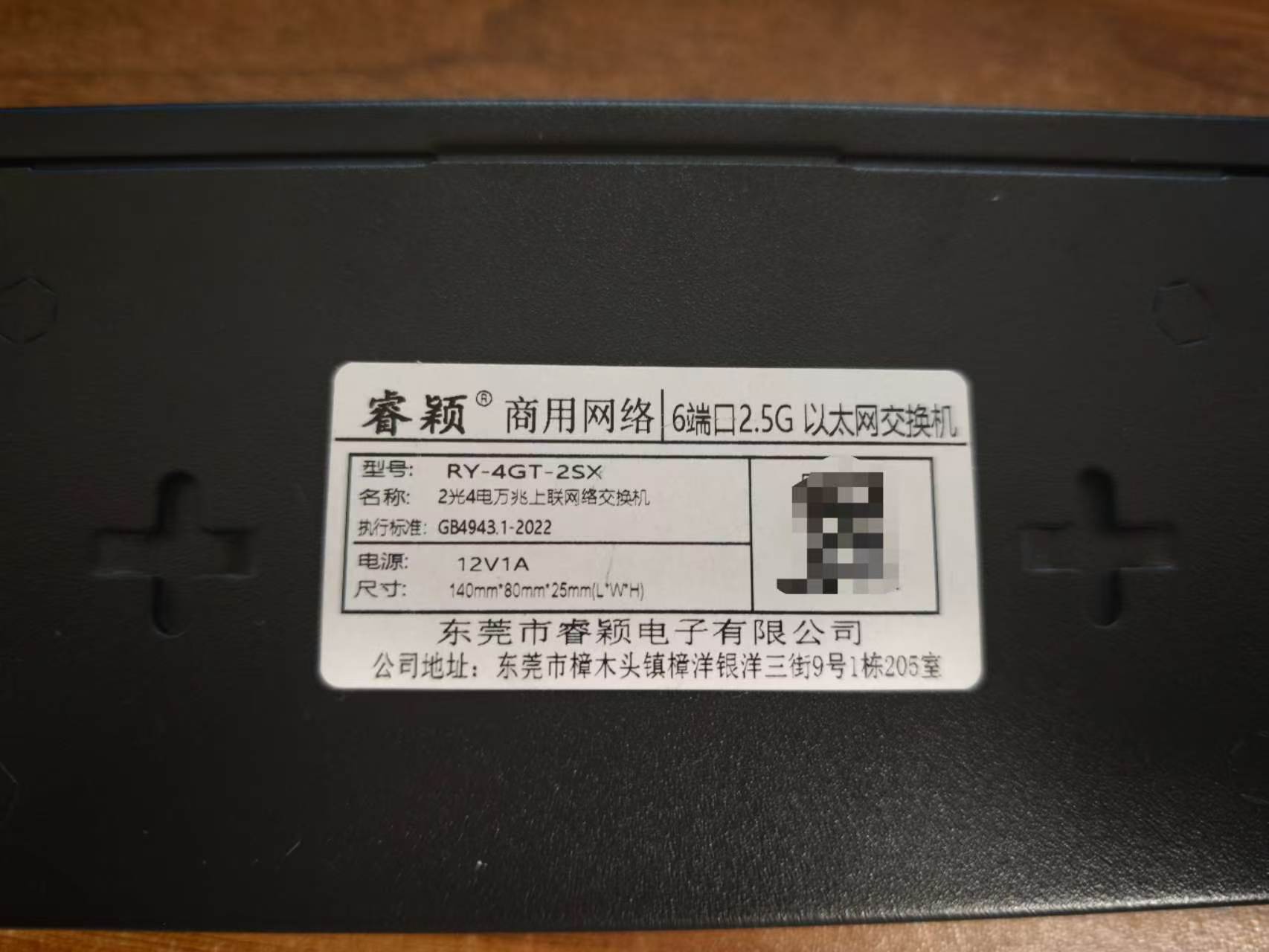

* Ruiying RY-4GT-2SX

<img src="photos/FG-4GT-2SX_V2.0/RY-4GT-2SX_label.jpg" width="300" />

## What works

- All four 2.5GBASE-T RJ45 ports at 10/100/1000/2500 Mbps
- Both SFP ports supporting 1G, 2.5G and 10G modules
- LEDs

## PCB overview

**Board markings**

- Top silkscreen: FG-4GT-2SX_V2.0

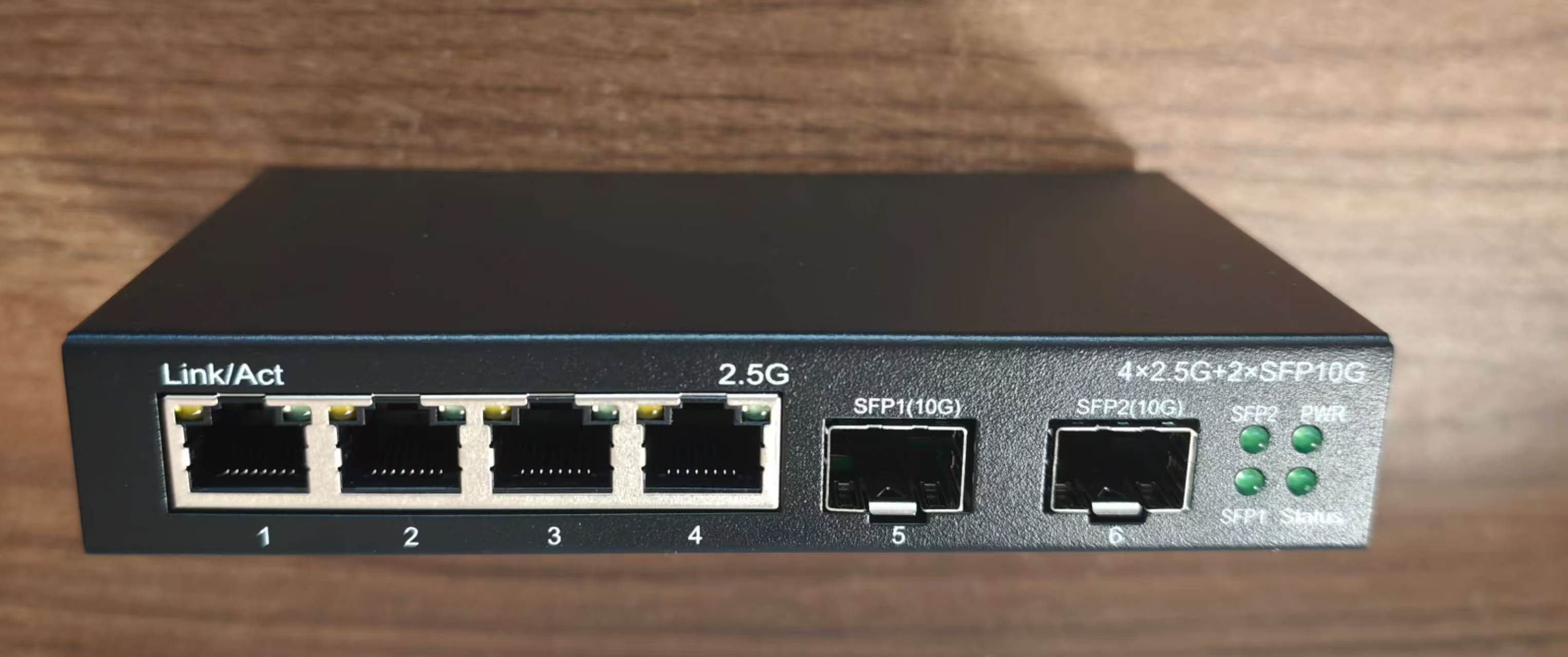

Front panel

<img src="photos/FG-4GT-2SX_V2.0/chassis-front.jpg" width="300" />

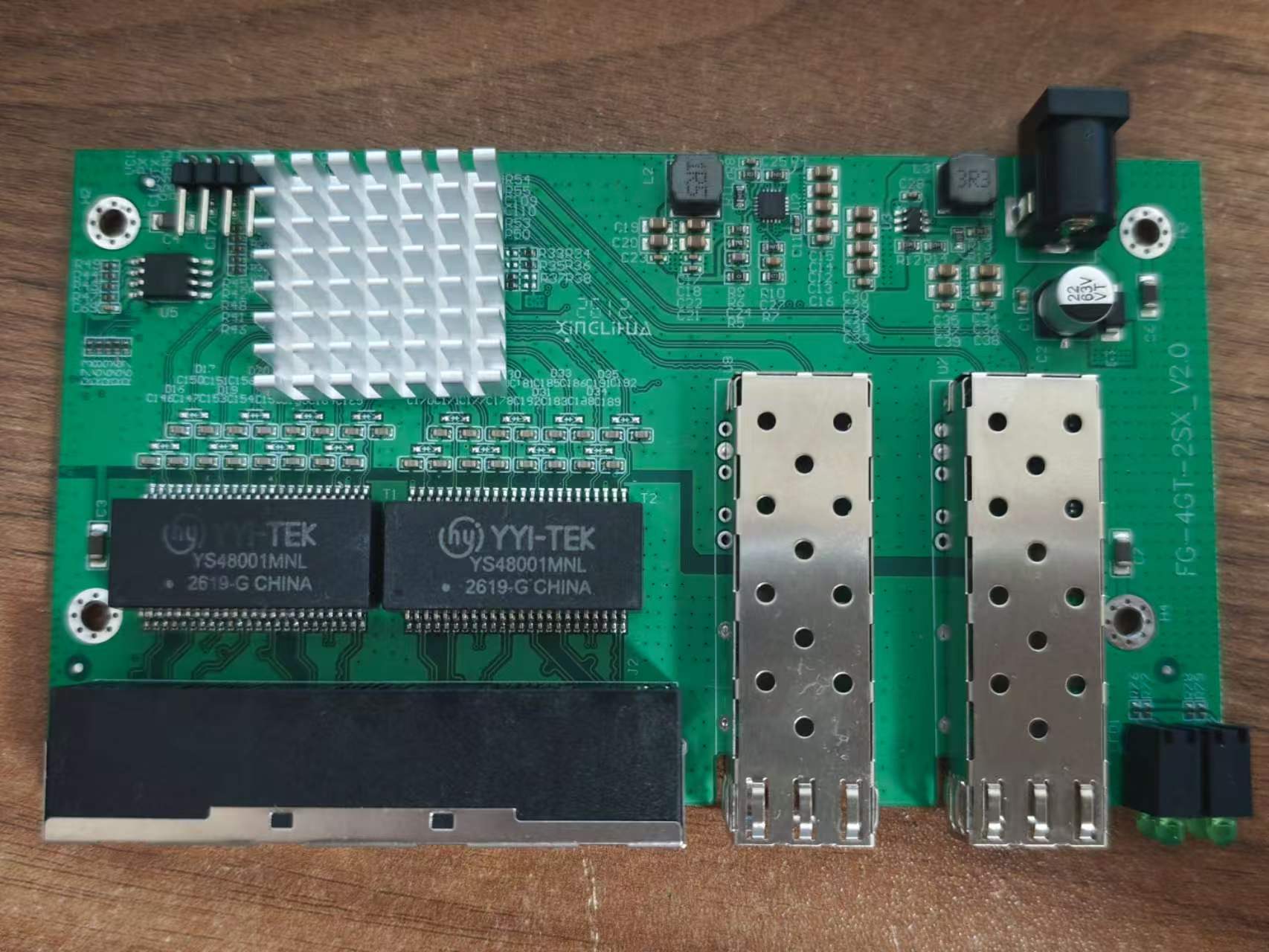

Top side

<img src="photos/FG-4GT-2SX_V2.0/PCB-top.jpg" width="300" />

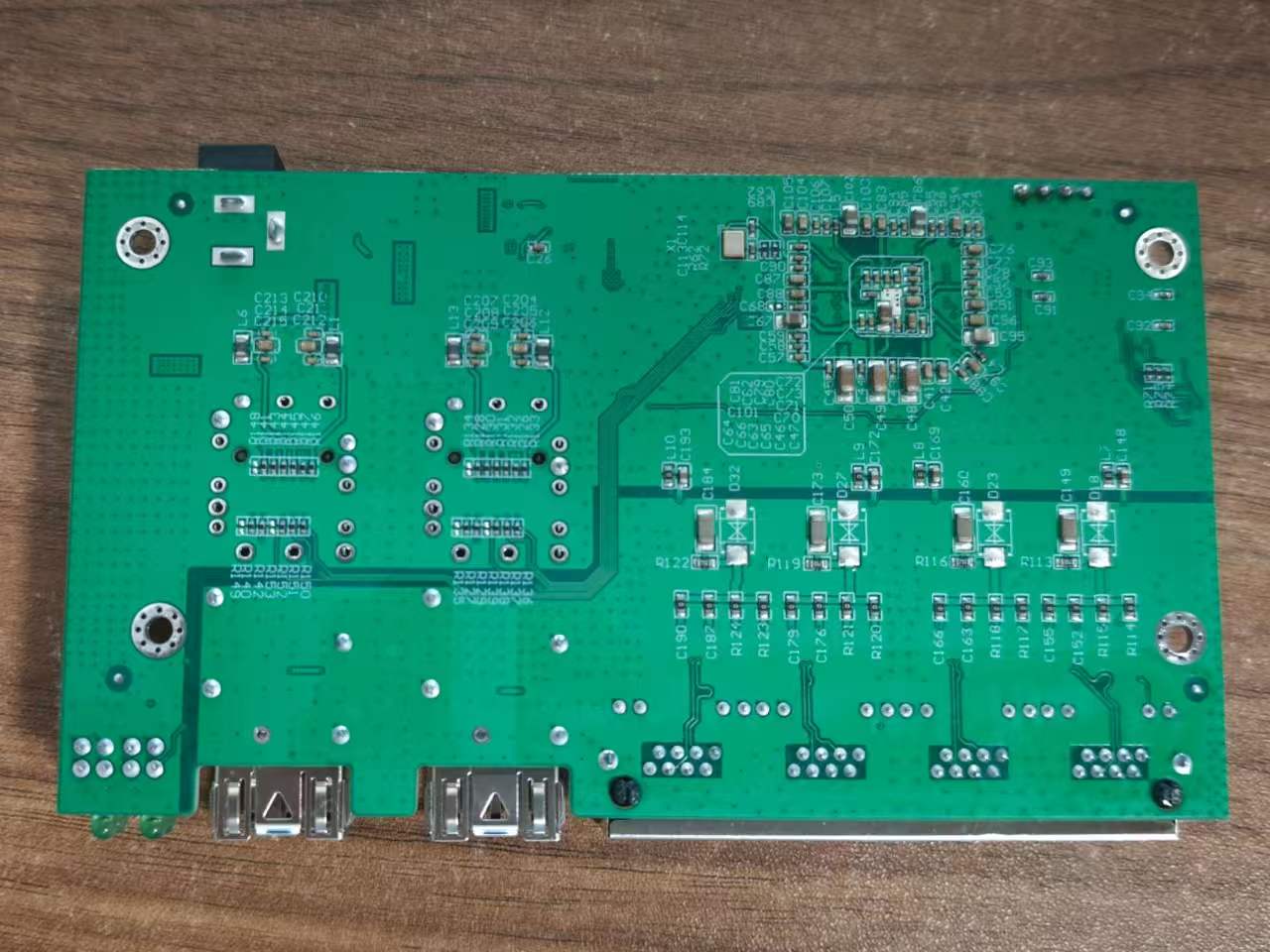

Bottom

<img src="photos/FG-4GT-2SX_V2.0/PCB-bottom.jpg" width="300" />

## Power supply

Input power is delivered via barell plug, `12V 1A` adapter was provided.
