### ZX-SWTGW218AS

## Brands
|Brand|Type|Managed|PCB|Flash|Chip RTL|
|---|---|---|---|---|---|
| Mokerlink | ZX-SWTGW218AS | Yes|  SWTG118AS-V2.0-16029 | 2MB (FM25Q16A)| 8273N + 8224N |
| Sodola | | | | | |
| Horaco | HC-SWTGW218AS | Yes | SWTG118AS-V2.1 | 2MB | 8373 (non-N) |
| XikeStor | SKS3200-8E1X | Yes | SWTG118AS-V2.1-17462 | 2MB (25Q16JVSIQ) | |

All boards in this table use `MACHINE=SWTGW218AS`. The Horaco HC-SWTGW218AS is also sold with the
[SWTG018AS-A V2.0](SWTG018AS_A_V2_0.md) board, which needs a different firmware. Check the marking
on the PCB before flashing.

On all three tested Horaco HC-SWTGW218AS units with PCB SWTG118AS-V2.1, `regget 4` returned
`REGGET: 0x0004: VAL: 0x83730000`, identifying the CPU as RTL8373 (non-N). An RTL8373N returns
`0x83737000` instead. The PHY and flash-chip models on these units have not been verified.


## Photos

<img src="photos/SWTGW218AS-managed/front.png" width="800" />

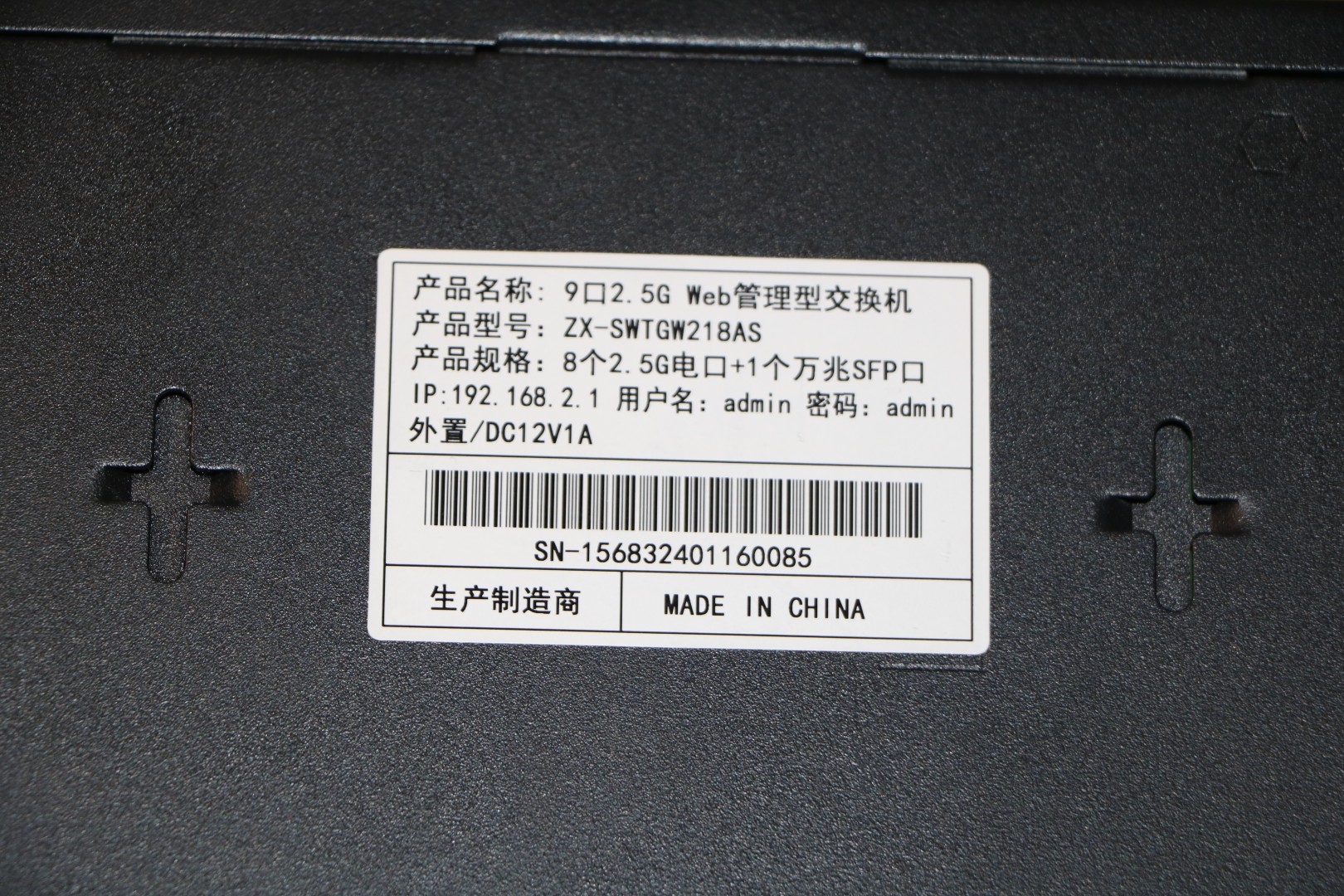

<img src="photos/SWTGW218AS-managed/label.jpg" width="800" />

## PCB

See up'n'atom's Repo:

https://github.com/up-n-atom/SWTG118AS/blob/main/photos/SWTG118AS-v2.0/SWTG118AS-v2.0-pcb-top.JPG

https://github.com/up-n-atom/SWTG118AS/blob/main/photos/SWTG118AS-v2.0/SWTG118AS-v2.0-pcb-bottom.JPG
